Inclined Diesel Pump

This Inclined Diesel Concrete Pump is a compact, wheel-mounted conveying solution designed for small-scale construction projects.

Maximum Pressure: 10MPa

Bore Diameter: 120×600mm

Diesel Power: 25kW

SEND EMAIL NOW

Products Description

This Inclined Diesel Concrete Pump is a compact, wheel-mounted conveying solution designed for small-scale construction projects. With a theoretical delivery capacity of 6-8m³/h and a maximum pressure of 10MPa, it efficiently pumps concrete with aggregates up to 30mm.

Powered by a 25kW diesel engine, it operates independently of external power sources, making it ideal for remote sites or areas with unstable electricity. It features a compact footprint and lightweight design , allowing for easy towing and maneuvering on tight job sites. The pump supports φ80mm delivery pipes, with a horizontal conveying distance of 50-60m and a vertical height of 25m, perfectly suited for residential construction, small renovations, and narrow-site projects.

Built for durability and low maintenance, this pump is a high-demand, repeat-order model ideal for dealers targeting small-to-medium construction market.

Products Advantage

High Market Fit

Ideal for small-scale residential and renovation projects, with steady repeat orders.

Diesel-Powered Versatility

25KW engine works without external power.

Ultra-Compact & Lightweight

Only 650kg with small dimensions, easy to move on tight job sites.

Low Operating Cost

Efficient diesel performance with low fuel consumption for small projects.

Dealer-Friendly Pricing

Factory direct tiered discounts with OEM/ODM support to maximize profit margins.

Low After-Sales Risk

Universal spare parts and robust build reduce maintenance and return rates.

Products Parameters

Type	Inclined Diesel Pump
Theoretical Delivery Capacity	6-8m³/h
Max Aggregate Size	≤30mm
Maximum Pressure	10MPa
Bore Diameter	120×600mm
Diesel Power	25kW
Oil Pump Power	50L/S
Tube Inner Diameter	φ80mm
Overall Dimensions	1750×800×1500mm
Weight	650kg
Theoretical Horizontal Distance	50-60m
Theoretical Vertical Height	25m

Product Field Work

Real Shot Images

One machine does it all

Multiple Models Available For Selection

Concrete construction machinery industry

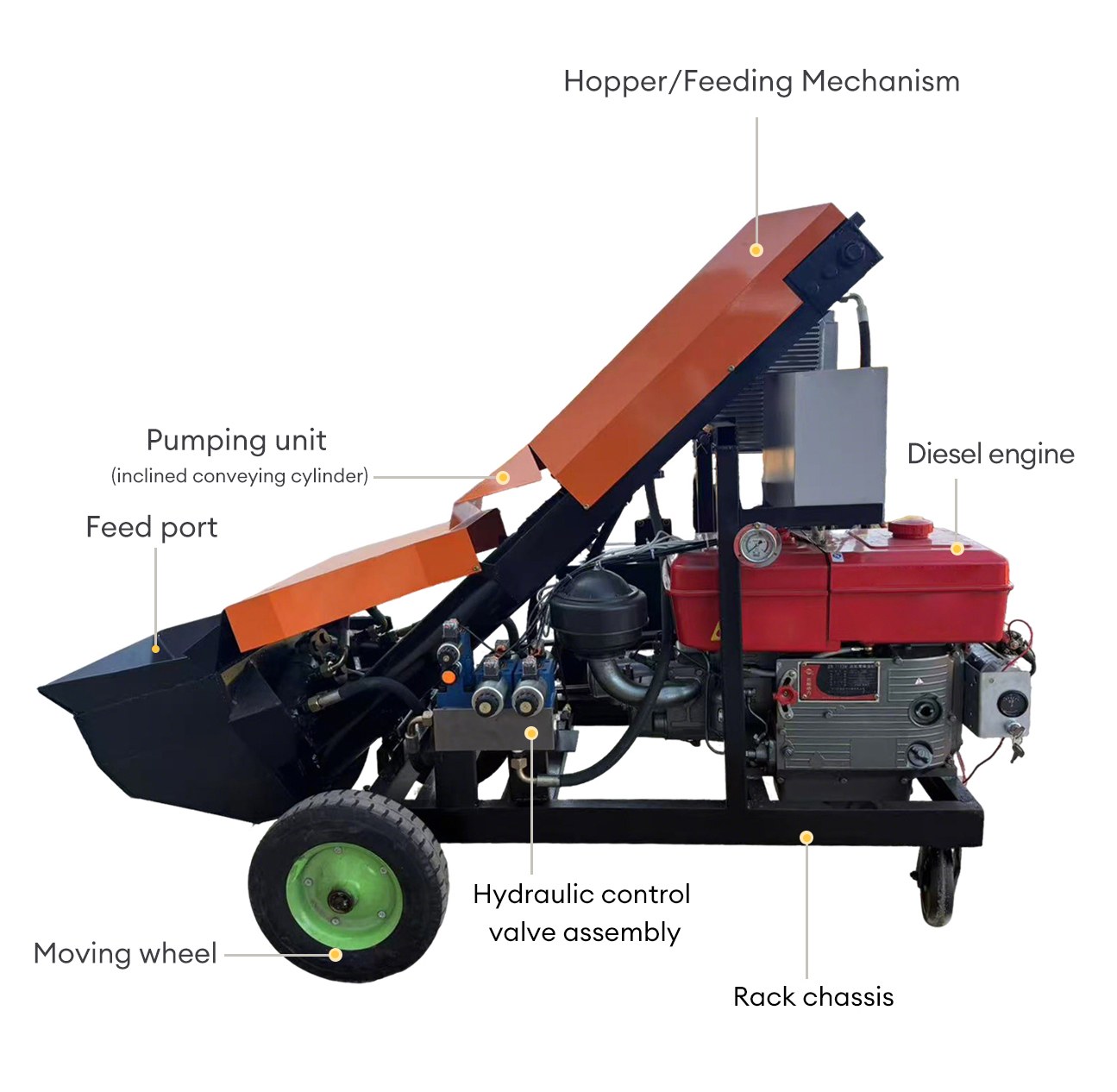

Detailed Display

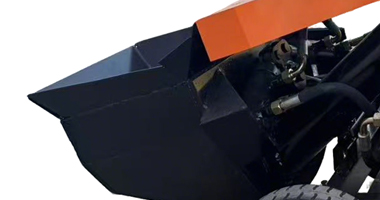

Feed port

A dedicated inlet for feeding raw materials and supplies into machinery and equipment, used to convey materials into the equipment.

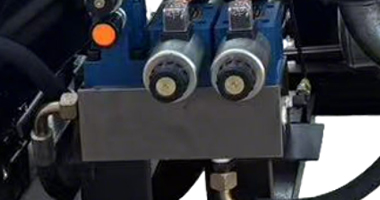

Hydraulic control valve assembly

Provides power for equipment operation, driving the pump to complete material conveying operations.

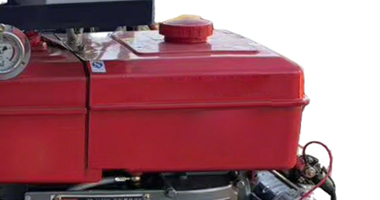

Engine

Provides power for equipment operation, driving the pump to complete material conveying operations.

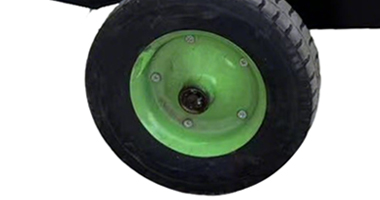

Wear-resistant tires

Heavy-duty and wear-resistant, easy to move, adaptable to construction site road conditions, provides stable support for equipment and facilitates relocation and handling.
