30Type Electric pump

Products Description

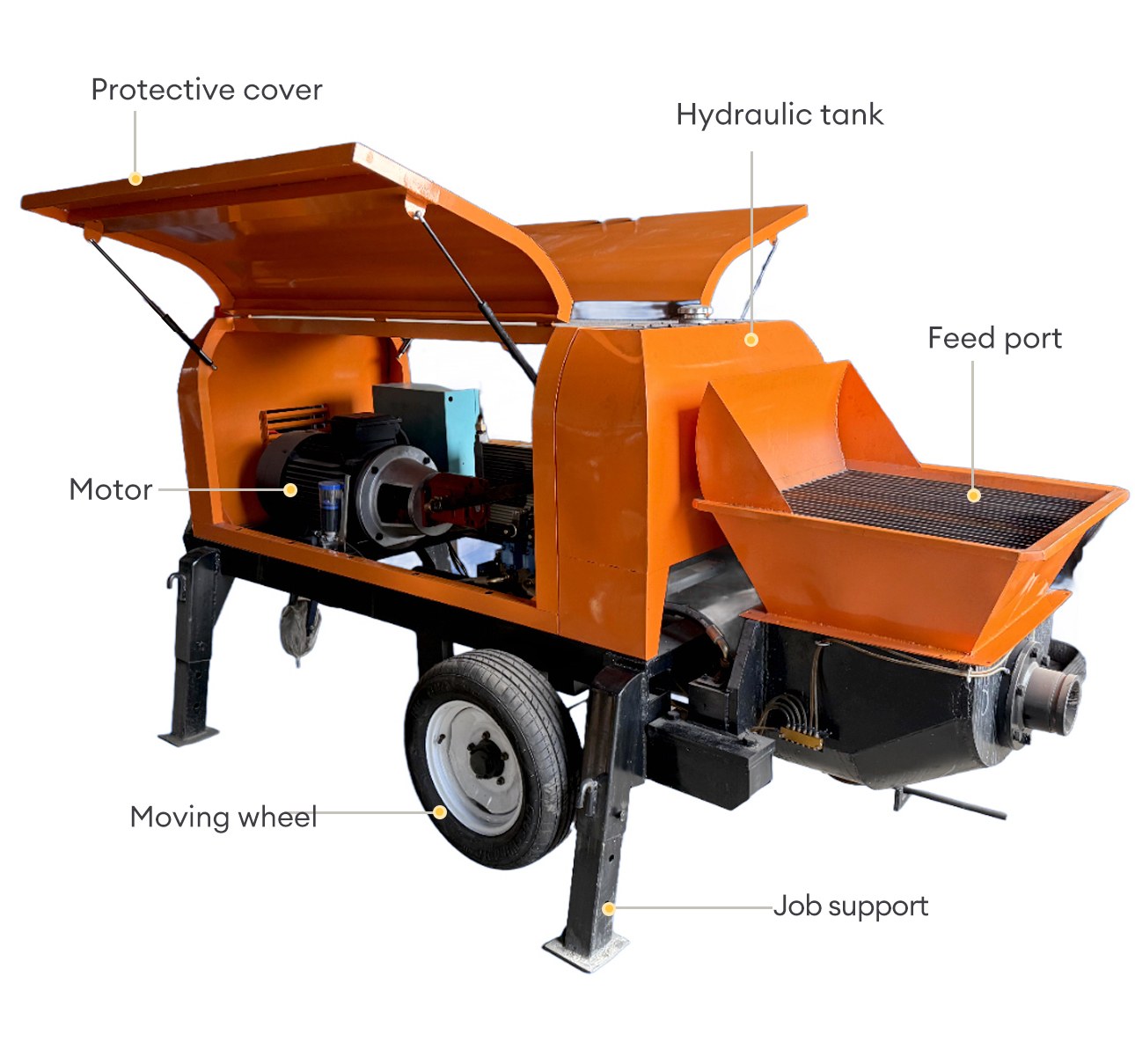

This 30 Electric Concrete Pump is a trailer-mounted, motor-driven concrete conveying solution, designed for small-to-medium construction projects where stable power is available. With a theoretical output of 15-18m³/h and a maximum pressure of 15MPa, it efficiently pumps concrete with aggregate sizes up to 30mm.

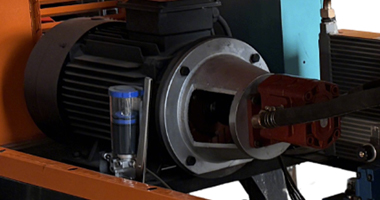

Powered by a reliable 30kW electric motor, it offers consistent performance and low operational noise. The pump delivers a horizontal conveying distance of 80-150m and a vertical height of 50-80m, covering most low-to-mid-rise building and residential construction needs. Its compact design and 1500kg weight ensure easy towing and on-site mobility, supporting both φ80mm and φ100mm delivery pipes for flexible application.

Built for durability and low maintenance, this pump is a cost-effective, repeat-order product for local contractors. As a dealer-focused solution, it offers strong market fit, low after-sales risk, and attractive profit potential.

Products Advantage

Products Parameters

Type	30 Electric Pump
Theoretical Delivery Capacity	15-18m³/h
Max Aggregate Size	≤30mm
Maximum Pressure	15MPa
Bore Diameter	140×710mm
Motor Power	30kW
Oil Pump Power	80L/S
Tube Inner Diameter	φ100(φ80)mm
Overall Dimensions	3600×1450×1460mm
Weight	1500kg
Theoretical Horizontal Distance	80-150m
Theoretical Vertical Height	50-80m
