Products Description
This 30 diesel concrete pump is a trailer type diesel powered concrete delivery solution designed specifically for small and medium-sized construction projects. The theoretical output is 15-18m ³/h, with a maximum pressure of 18MPa, which can effectively pump concrete with aggregate particle size up to 30mm.
It is powered by a reliable 66KW diesel engine and operates independently of external power sources, making it an ideal choice for remote areas or areas with unstable electricity. The horizontal conveying distance of this pump is 150-180m, and the vertical height is 70-90m, which can meet the needs of most mid rise buildings and long-distance construction. Its compact design and weight ensure easy traction and on-site movement, while the 100mm diameter conveying pipe ensures smooth flow of concrete.
This pump has durability and low maintenance, making it a high demand, repeat order product for local contractors. As a dealer centered solution, it has strong market adaptability, low after-sales risk, and high profit potential.
Products Advantage
Products Parameters
| Type | 30 Diesel Pump |
| Theoretical Delivery Capacity | 15-18m³/h |
| Max Aggregate Size | ≤30mm |
| Maximum Pressure | 18MPa |
| Bore Diameter | 140×700mm |
| Diesel Power | 66KW |
| Oil Pump Power | 100L/S |
| Tube Inner Diameter | φ100mm |
| Overall Dimensions | 3800×1450×1600mm |
| Weight | 2000kg |
| Theoretical Horizontal Distance | 150-180m |
| Theoretical Vertical Height | 70-90m |

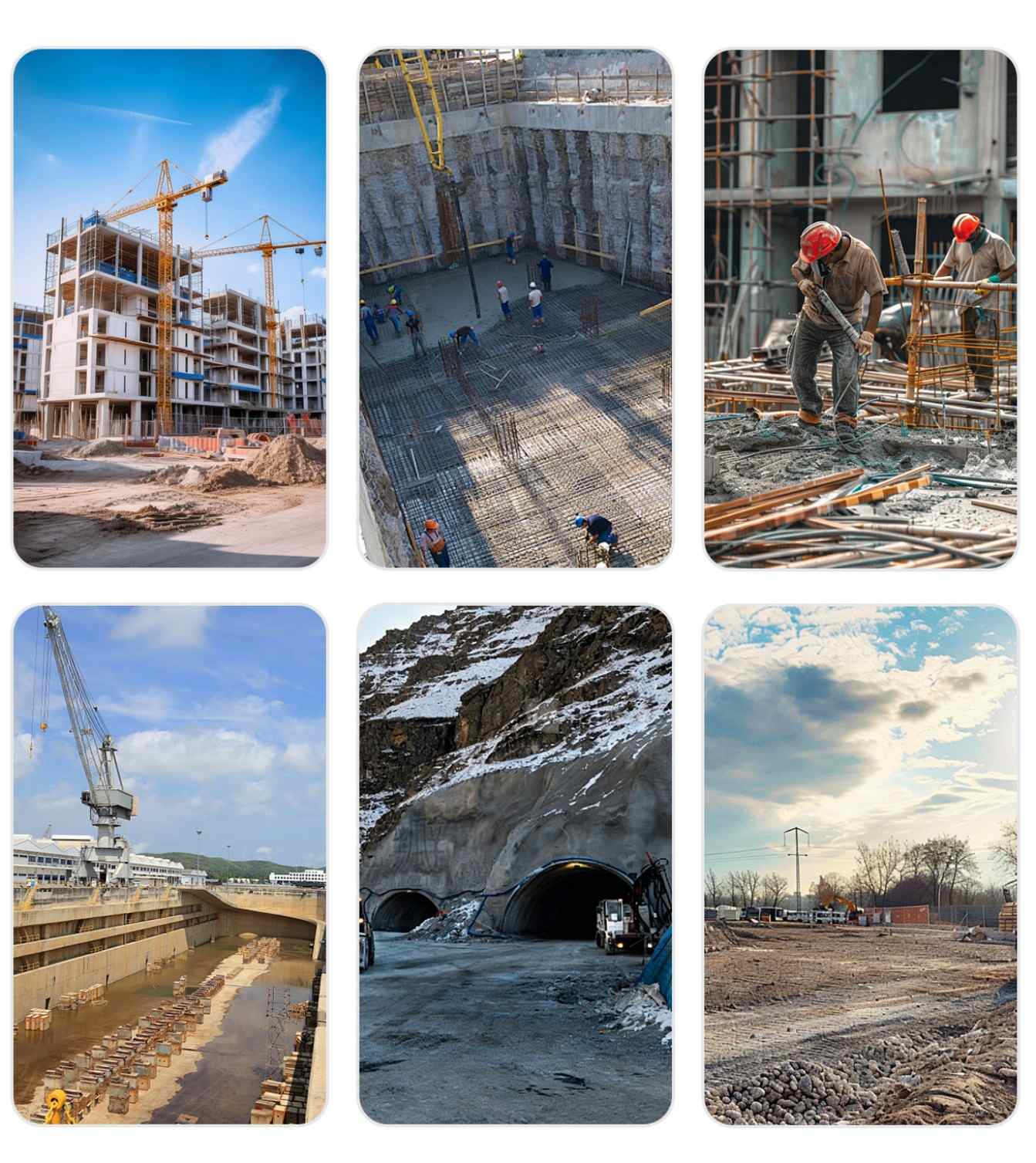

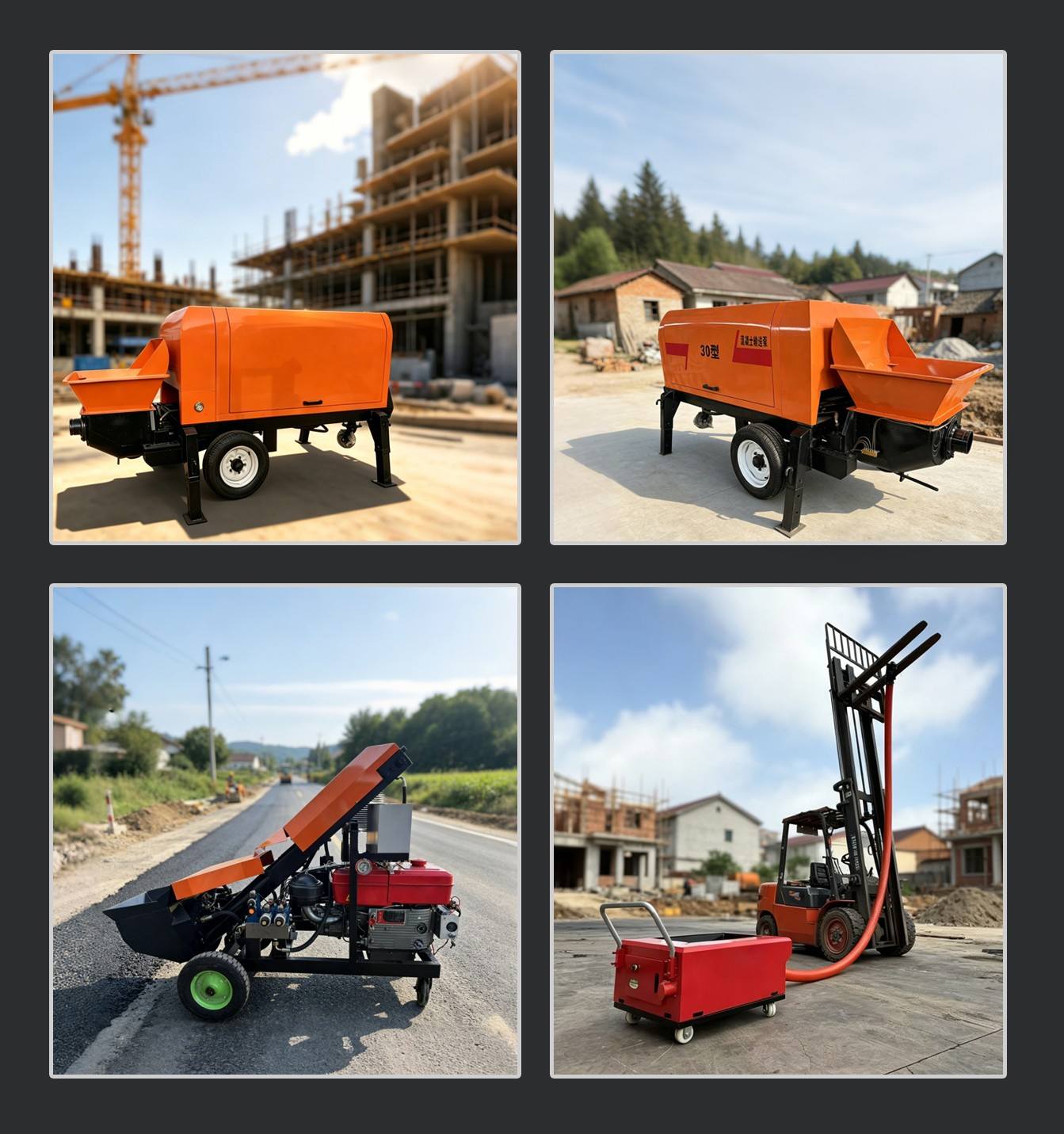

Product Field Work

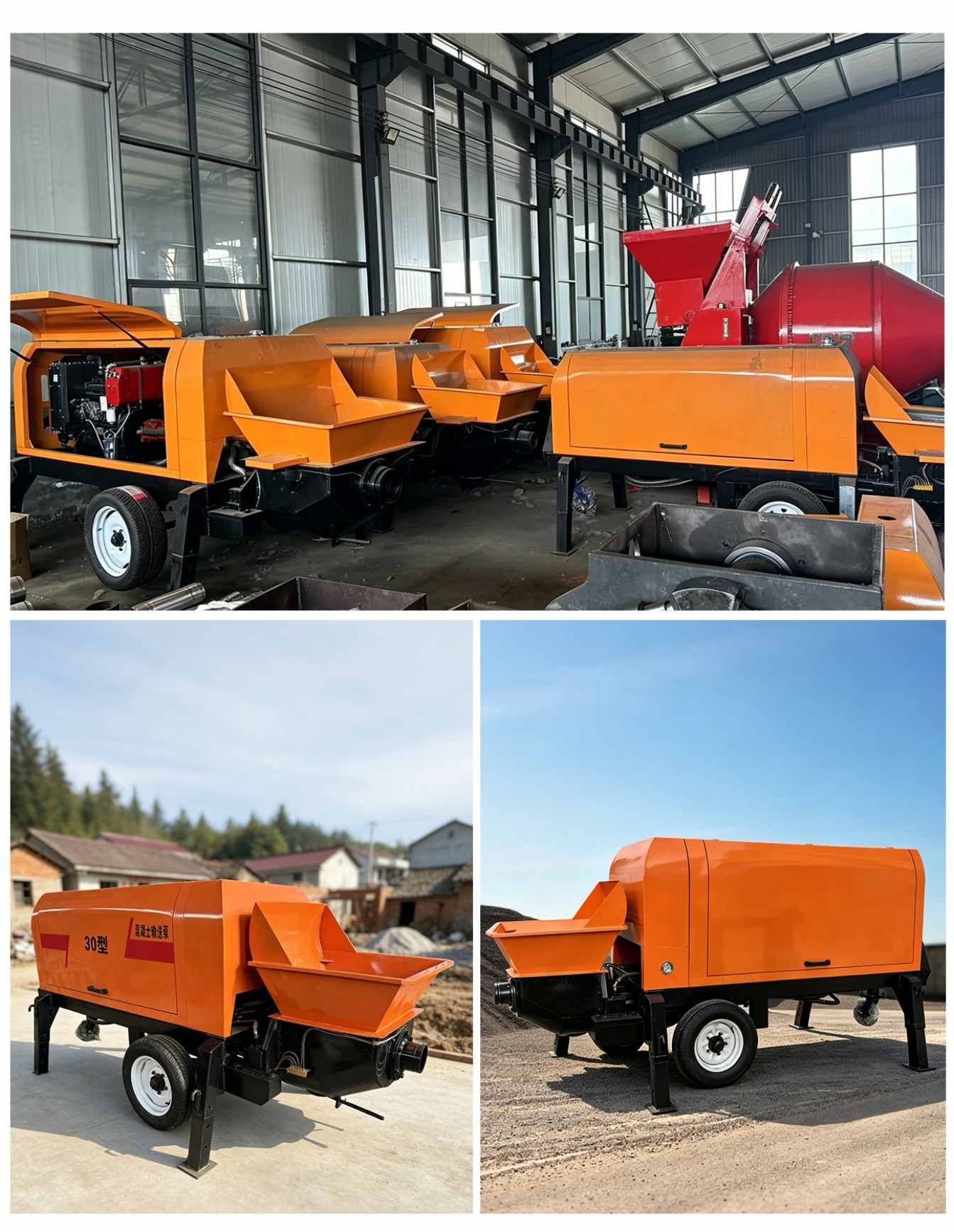

Real Shot Images
One machine does it all

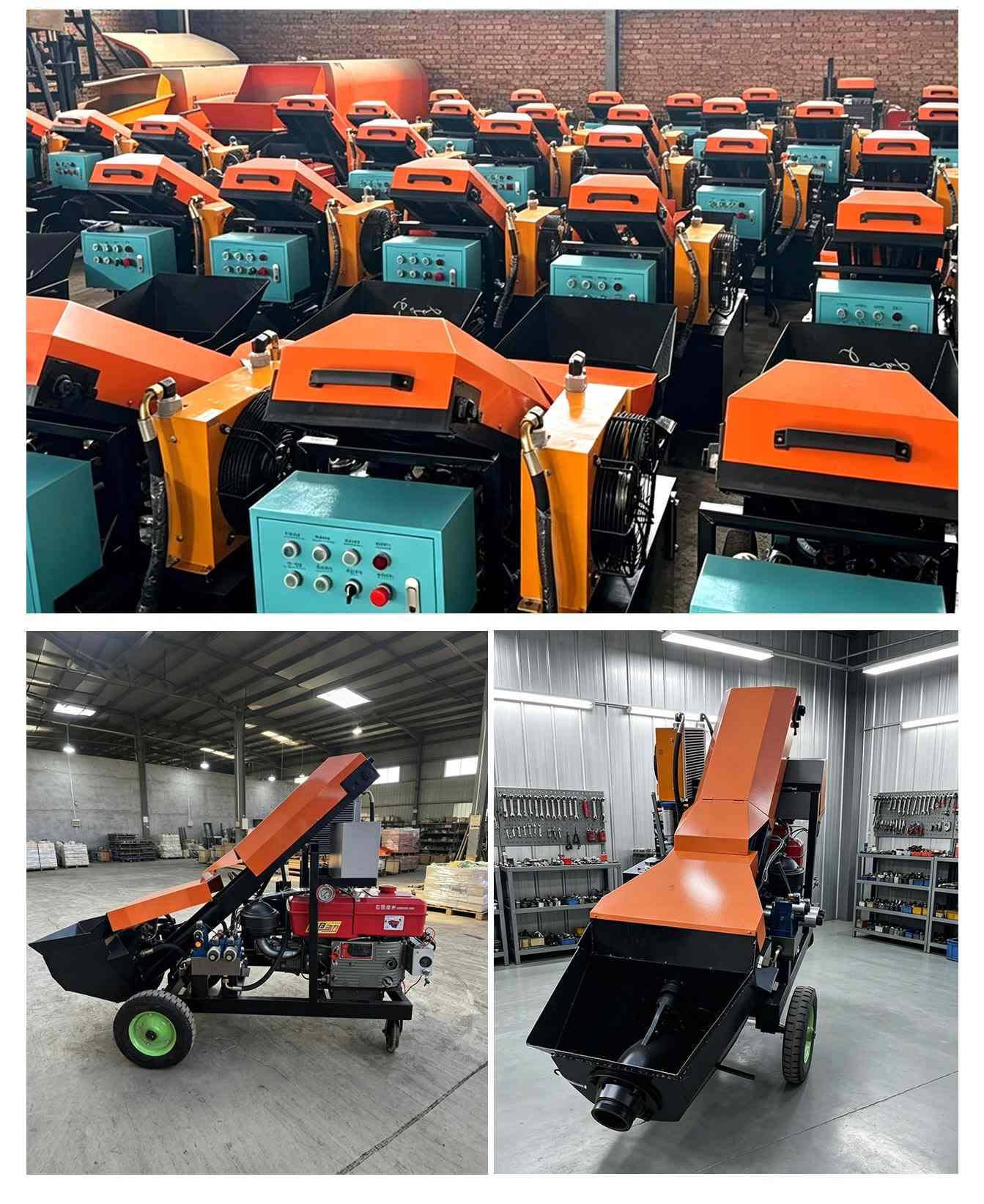

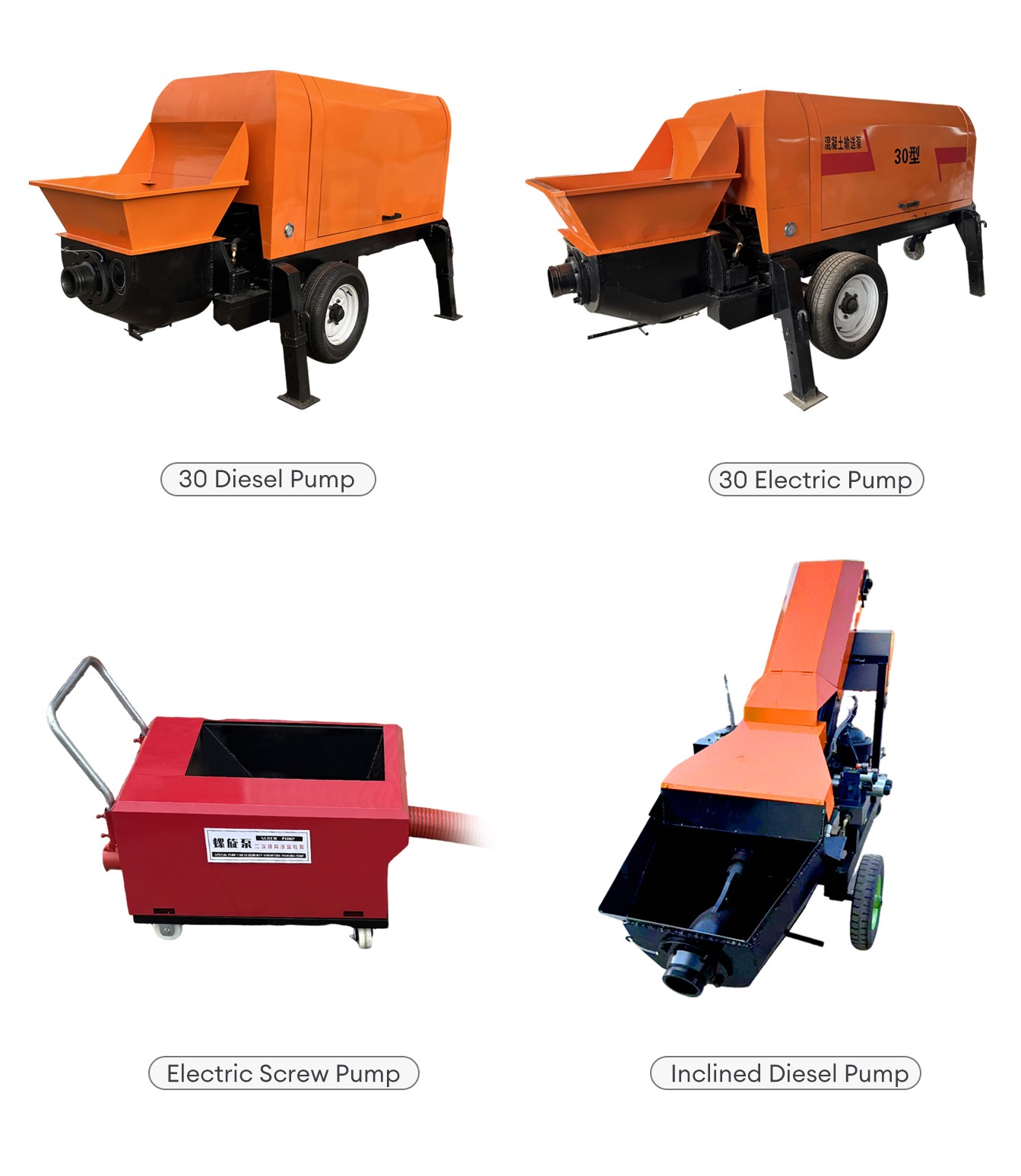

Multiple Models Available For Selection
Concrete construction machinery industry

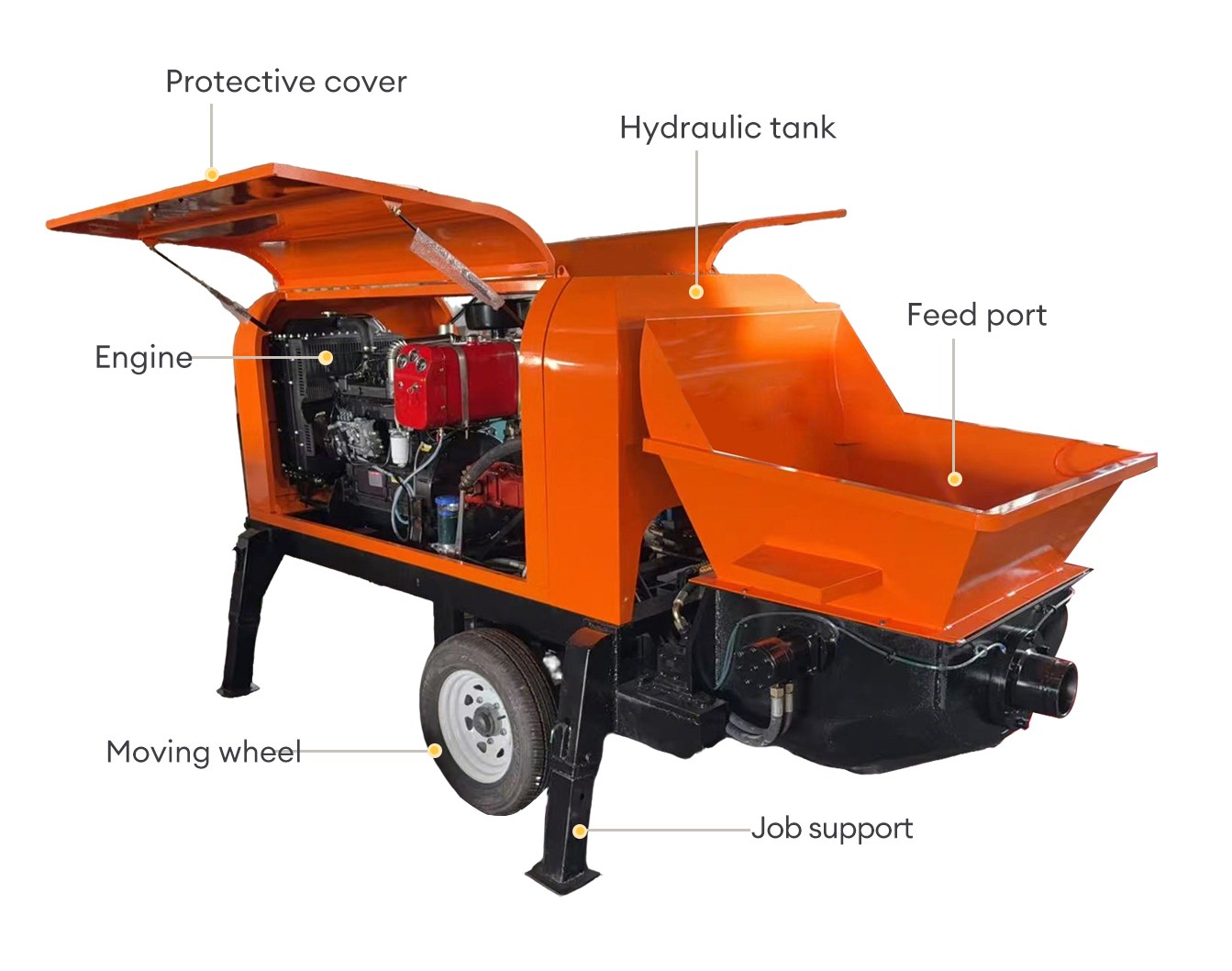

Detailed Display

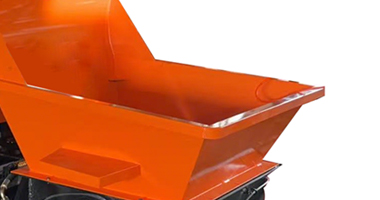

A dedicated inlet for feeding raw materials and supplies into machinery and equipment, used to convey materials into the equipment.

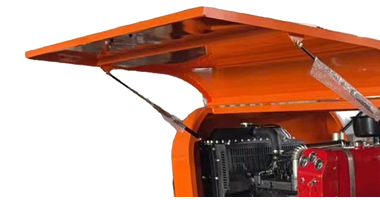

It can block debris, isolate dangers, and protect personnel safety and the normal operation of equipment.

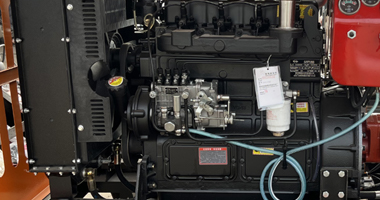

Provides power for equipment operation, driving the pump to complete material conveying operations.

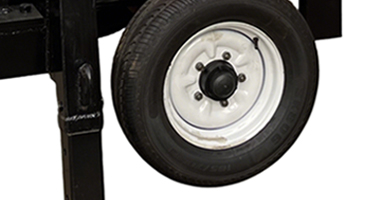

Can be suspended during work, easy to moveFree and durable
