Products Description

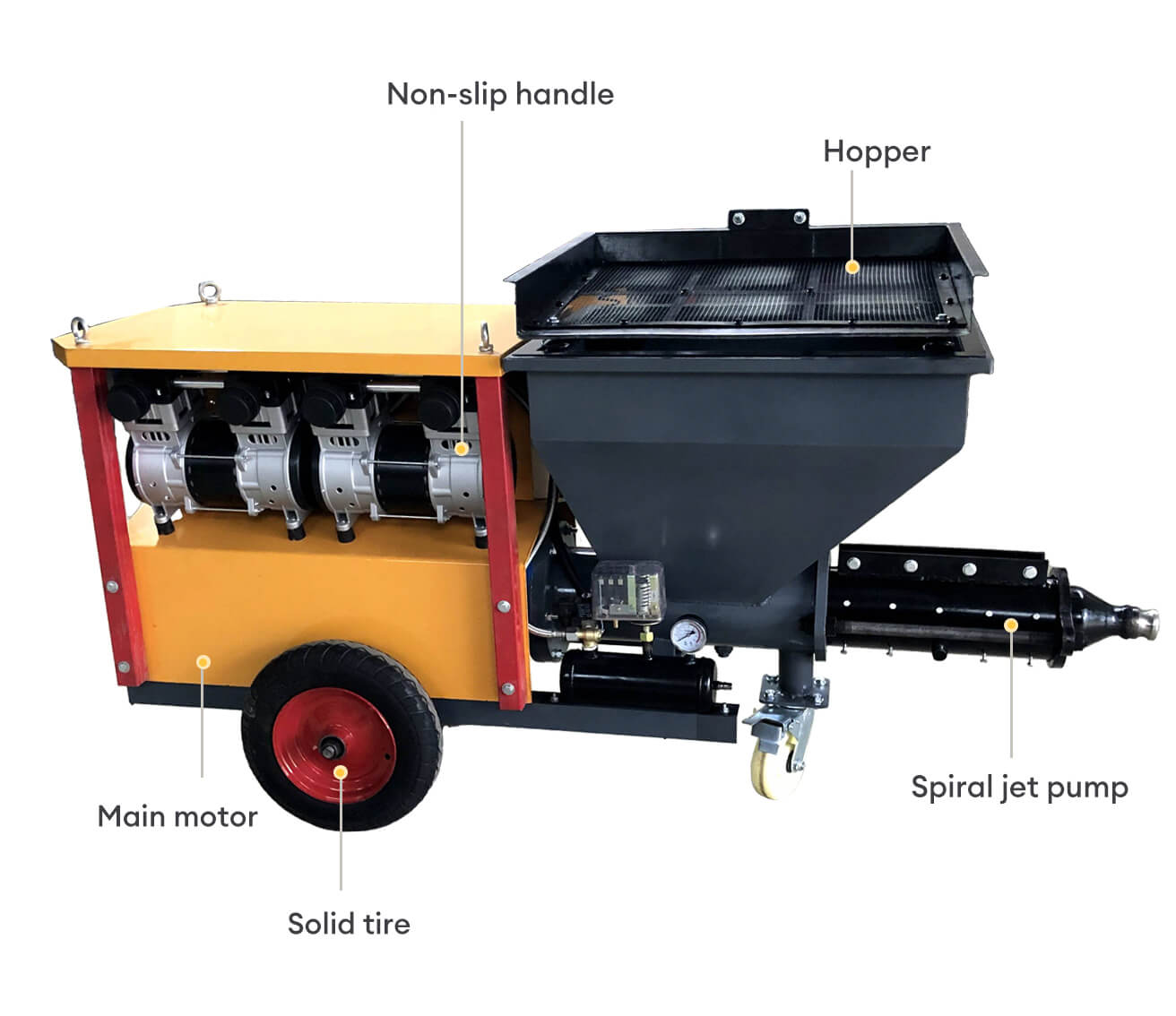

The 711 Series Mortar Spraying Machine is a high-performance, heavy-duty solution designed for large-scale plastering, grouting, and spraying projects worldwide. Powered by a robust 9kW motor optimized for 380V industrial power grids, it delivers consistent performance in demanding construction environments.
With a maximum material particle size of 6mm, it achieves an impressive spraying speed of 180㎡/hour, drastically boosting on-site productivity. Featuring a 30m vertical conveying height and 50m horizontal conveying distance, it is ideal for high-rise buildings, large commercial sites, and long-distance applications.
At 260kg, its sturdy wheel-mounted design ensures easy transport and quick setup. Built with durable components and a service-friendly structure, this spraying machine is a high-demand, repeat-order product for global dealers targeting growing construction markets.
Products Advantage
Products Parameters
| Model | 711 Series Mortar Spraying Machine |
| Motor Power | 9KW |
| Voltage | 380V |
| Max Material Particle Size | ≤6mm |
| Vertical Conveying Height | 30m |
| Horizontal Conveying Distance | 50m |
| Spraying Speed | 180㎡/hour |
| Machine Weight | 260kg |
| Packing Dimensions | 1920*720*1155mm |
Product Field Work
Real Shot Images
One machine does it all
Multiple Models Available For Selection
Construction machinery industry
Detailed Display

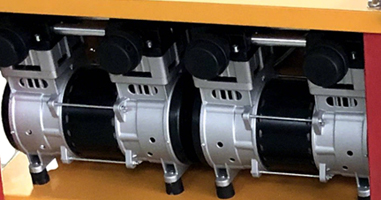

The air pressure is sufficient and stable, the air supply is durable, and the atomization effect is excellent
Special spraying material, with good atomization effect and stable discharge

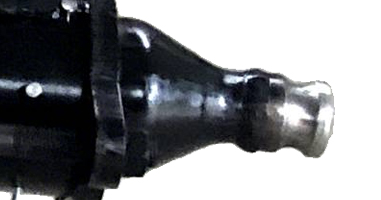

The spiral pump body structure ensures smooth suction, sufficient pressure, and resistance to blockage

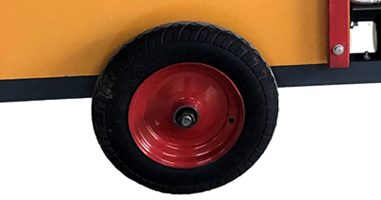

Solid tires are strong in bearing weight, wear-resistant and durable, and provide a stable ride
Product Specifications
