Products Description
The 511 Series Mortar Spraying Machine is a high-power, wheel-mounted solution designed for medium-to-large plastering, grouting, and spraying projects worldwide. Powered by a robust 7.5kW motor with 380V compatibility, it delivers consistent performance on construction sites.
With a maximum material particle size of 5mm, it achieves a spraying speed of 150㎡/hour, significantly boosting on-site productivity. Featuring a 22m vertical conveying height and 45m horizontal conveying distance, it is ideal for multi-story buildings and large-scale commercial construction projects.
At 220kg, its sturdy wheel-mounted design ensures easy transport and quick setup. Built with durable components and a service-friendly structure, this spraying machine is a high-demand, repeat-order product for global dealers targeting growing construction markets.
Products Advantage
Products Parameters
| Model | 511 Series Mortar Spraying Machine |
| Motor Power | 7.5kW |
| Voltage | 380V |
| Max Material Particle Size | ≤5mm |
| Vertical Conveying Height | 22m |
| Horizontal Conveying Distance | 45m |
| Spraying Speed | 150㎡/hour |
| Machine Weight | 220kg |
| Package size | 1750*700*1100mm |
Product Field Work
Real Shot Images
One machine does it all
Multiple Models Available For Selection
Construction machinery industry

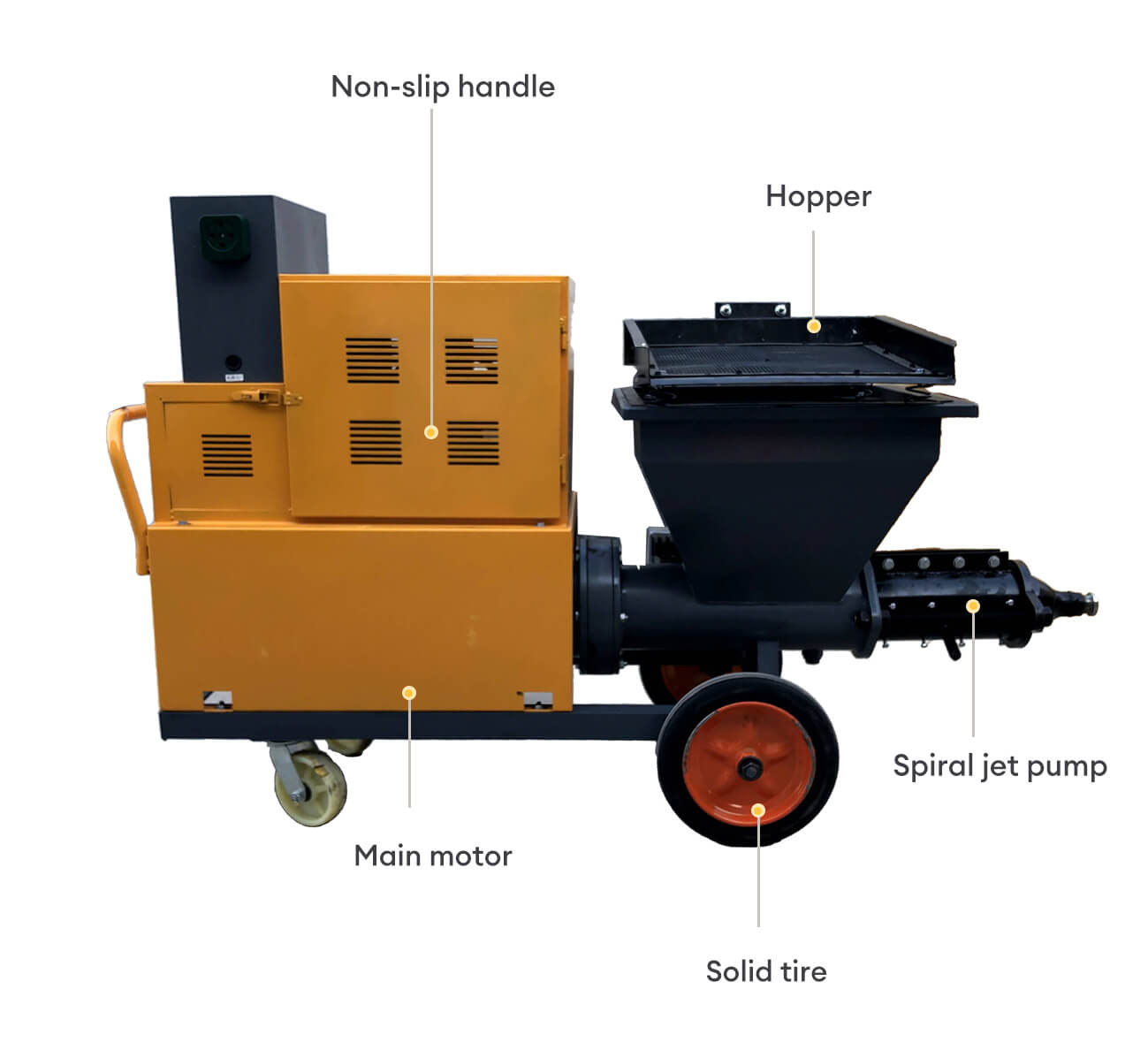

Detailed Display

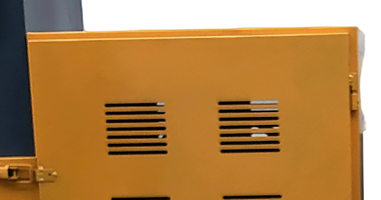

The air pressure is sufficient and stable, the air supply is durable, and the atomization effect is excellent
Special spraying material, with good atomization effect and stable discharge

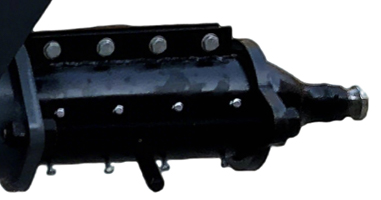

The spiral pump body structure ensures smooth suction, sufficient pressure, and resistance to blockage

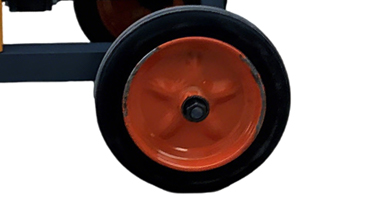

Solid tires are strong in bearing weight, wear-resistant and durable, and provide a stable ride
Product Specifications
