Products Description
The AL880 is a compact, diesel-powered ride-on road roller designed for small-to-medium construction projects, including driveways, sidewalks, parking lots, and trench backfill compaction. Built with a durable steel frame and a 9HP Changfa/Changchai 188 diesel engine, it delivers reliable performance in confined spaces. Equipped with hydraulic dual drive and front drum vibration, it achieves a compaction force of 25KN at 70Hz frequency, ensuring superior density on asphalt, gravel, and soil surfaces. With a maximum travel speed of 0-6km/h, a 30L fuel tank, and an ergonomic operator seat, it balances efficiency, maneuverability, and operator comfort for long shifts.
Products Advantage
Products Parameters
| Model | AL880 Ride-on Double Drum Vibratory Roller |
| Operating Weight | 1.1Ton |
| Fuel Tank Capacity | 7L |
| Water Tank Capacity | 55L |
| Drum Size | 530×740mm / 530×800mm |
| Centrifugal Force | 25KN |
| Gradeability | 30% |
| Vibration Frequency | 70Hz |
| Travel Speed | 0-6km/h |
| Overall Dimensions | 1840×900×2160mm |
| Hydraulic Oil Tank Capacity | 30L |
| Engine Power | 9HP |
| Starting Method | Electric Start |
| Vibration Mode | Electromagnetic Clutch |
| Drive System | Hydraulic Dual Drive |
Product Field Work
Real Shot Images
One machine does it all
Multiple Models Available For Selection
Multifunctional roller

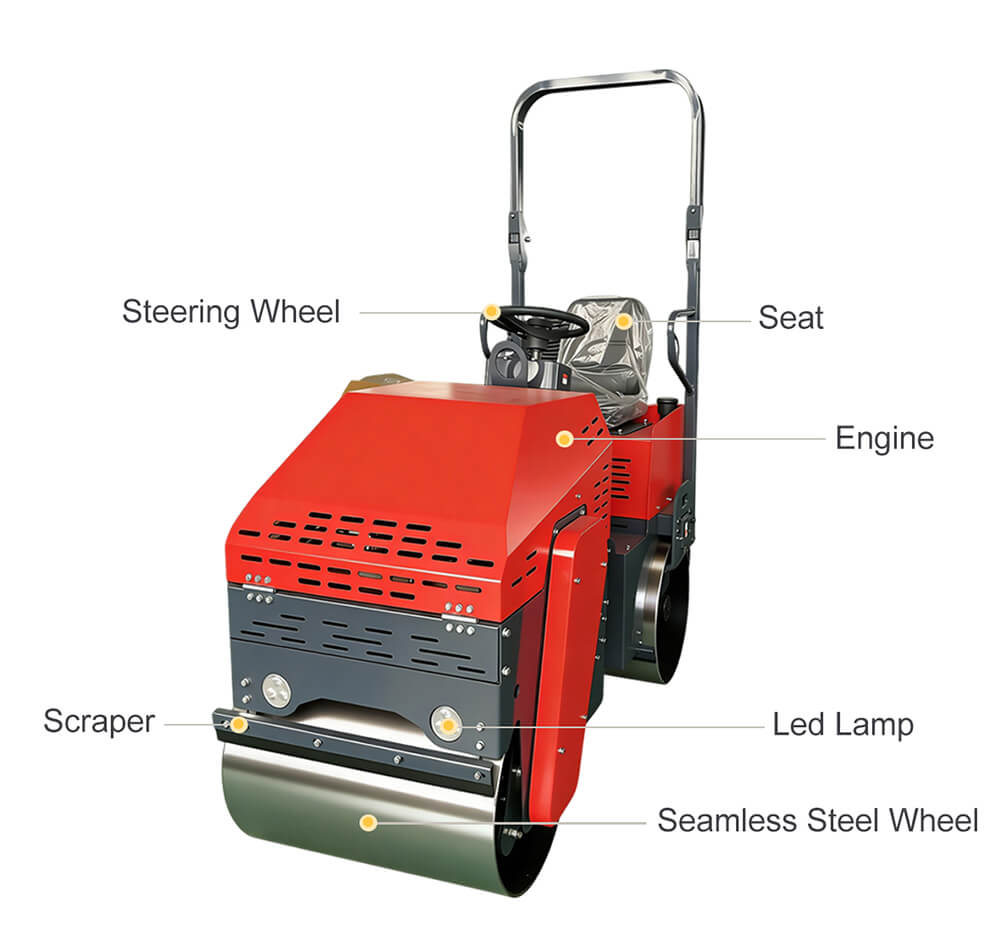

Detailed Display

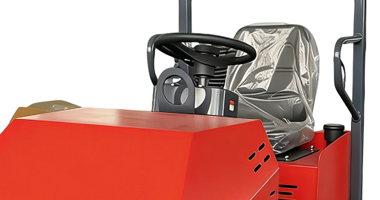

The installation includes a comfortable seat that is easy to adjust, ensuring a comfortable working environment.
Good quality and guaranteed after-sales service.

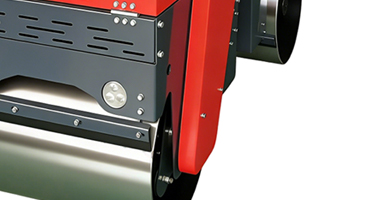

This scraping device prevents the mixture, mud, and asphalt from adhering to the steel wheel, thus making the road surface smoother.
Compacting road materials uses their own weight or the force generated by vibration to expel air from the gaps in the material and make the particles adhere tightly, thereby improving the density and stability of the road surface.
Product Specifications
Product Photo
