Products Description
The AL900 is a heavy-duty, compact ride-on road roller designed for professional compaction work on construction sites, including asphalt paving, soil compaction, and trench backfilling. Powered by a 13HP diesel engine, it delivers reliable performance with 25KN compaction force at 65Hz vibration frequency. Featuring hydraulic dual drive and full hydraulic vibration, it ensures smooth operation and high efficiency on both flat and sloped terrain. With a maximum travel speed of 0-8km/h, a 7L fuel tank, and a 55L water tank, it balances productivity and endurance for long shifts. Its compact size makes it ideal for narrow job sites and urban construction projects.
Products Advantage
Products Parameters
| Model | AL900 Ride-on Double Drum Vibratory Roller |
| Operating Weight | 1.5 Ton |
| Fuel Tank Capacity | 7L |
| Water Tank Capacity | 55L |
| Drum Size | 530×800mm |
| Centrifugal Force | 25KN |
| Gradeability | 30% |
| Vibration Frequency | 65Hz |
| Travel Speed | 0-8km/h |
| Overall Dimensions | 1840×900×2160mm |
| Hydraulic Oil Tank Capacity | 40L |
| Engine Power | 13HP |
| Starting Method | Electric Start |
| Vibration Mode | Hydraulic Vibration |
| Drive System | Hydraulic Dual Drive |
Product Field Work
Opening up the mechanical
industry of science and engineering
Multiple Models Available For Selection
Multifunctional roller

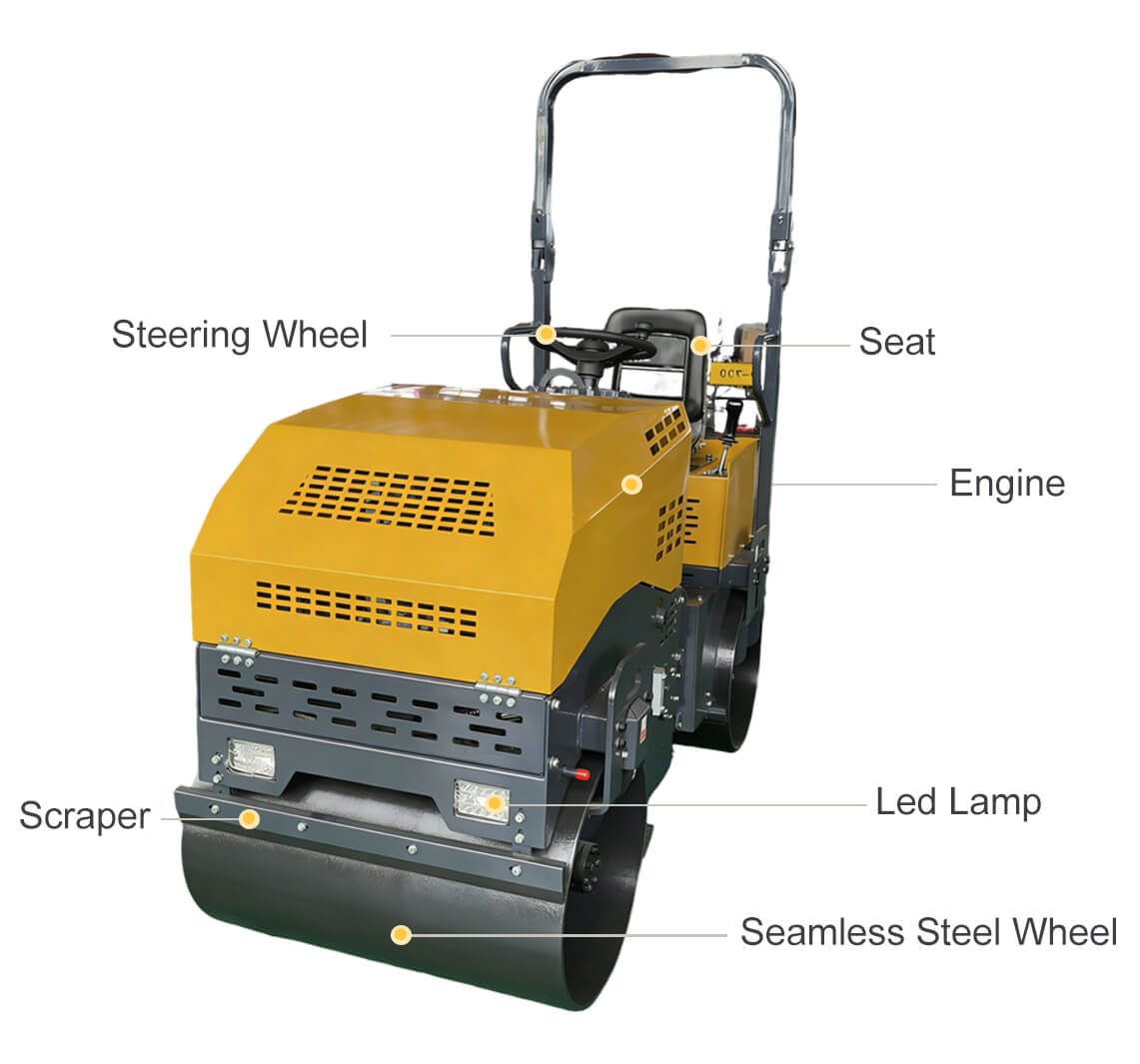

Detailed Display

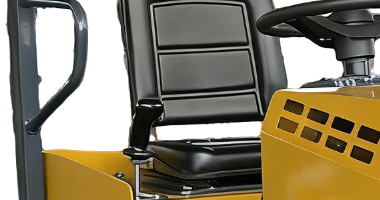

The installation includes a comfortable seat that is easy to adjust, ensuring a comfortable working environment.
Good quality and guaranteed after-sales service.

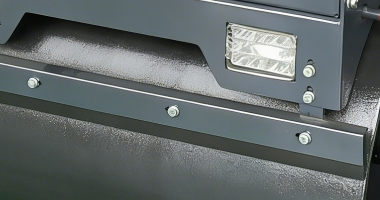

This scraping device prevents the mixture, mud, and asphalt from adhering to the steel wheel, thus making the road surface smoother.
Compacting road materials uses their own weight or the force generated by vibration to expel air from the gaps in the material and make the particles adhere tightly, thereby improving the density and stability of the road surface.
