产品描述
Alec 76# Hydraulic Semi-Automatic CNC Pipe Bending Machine is a heavy-duty, high-precision solution designed for bending large steel pipes in construction, pipeline, and metalworking projects worldwide. Powered by a robust 5.5kW motor and hydraulic system, it delivers consistent torque for smooth, accurate bends on larger pipe sizes.
It supports steel pipe diameters from Φ25mm to Φ76mm with wall thickness up to 3mm, and features 9 programmable bending angles for versatile customization. With a spindle speed of 25 RPM, it ensures efficient, repeatable results, while the 380V power supply provides stable performance for heavy-duty use. Built with a reinforced frame and weighing 700kg, it is engineered for continuous, high-volume operation and long-term durability. This high-precision hydraulic pipe bender is a high-demand, repeat-order product for global metalworking equipment dealers targeting large construction and pipeline markets.
产品优势
产品参数
| Model | 76# Hydraulic Semi-Automatic CNC Pipe Bending Machine |
| Applicable Pipe Diameter | Φ25–76mm |
| Motor Power | 5.5kW |
| Spindle Speed | 25 RPM |
| Power Supply | 380V 50Hz |
| Programmable Bending Angles | 9 angles |
| Applicable Wall Thickness | ≤3mm |
| Machine Dimensions | 1750×850×1150mm |
| Machine Weight | 700kg |
Product Field Work
Real Shot Images
One machine does it all
Multiple Models Available For Selection
Metal processing machinery

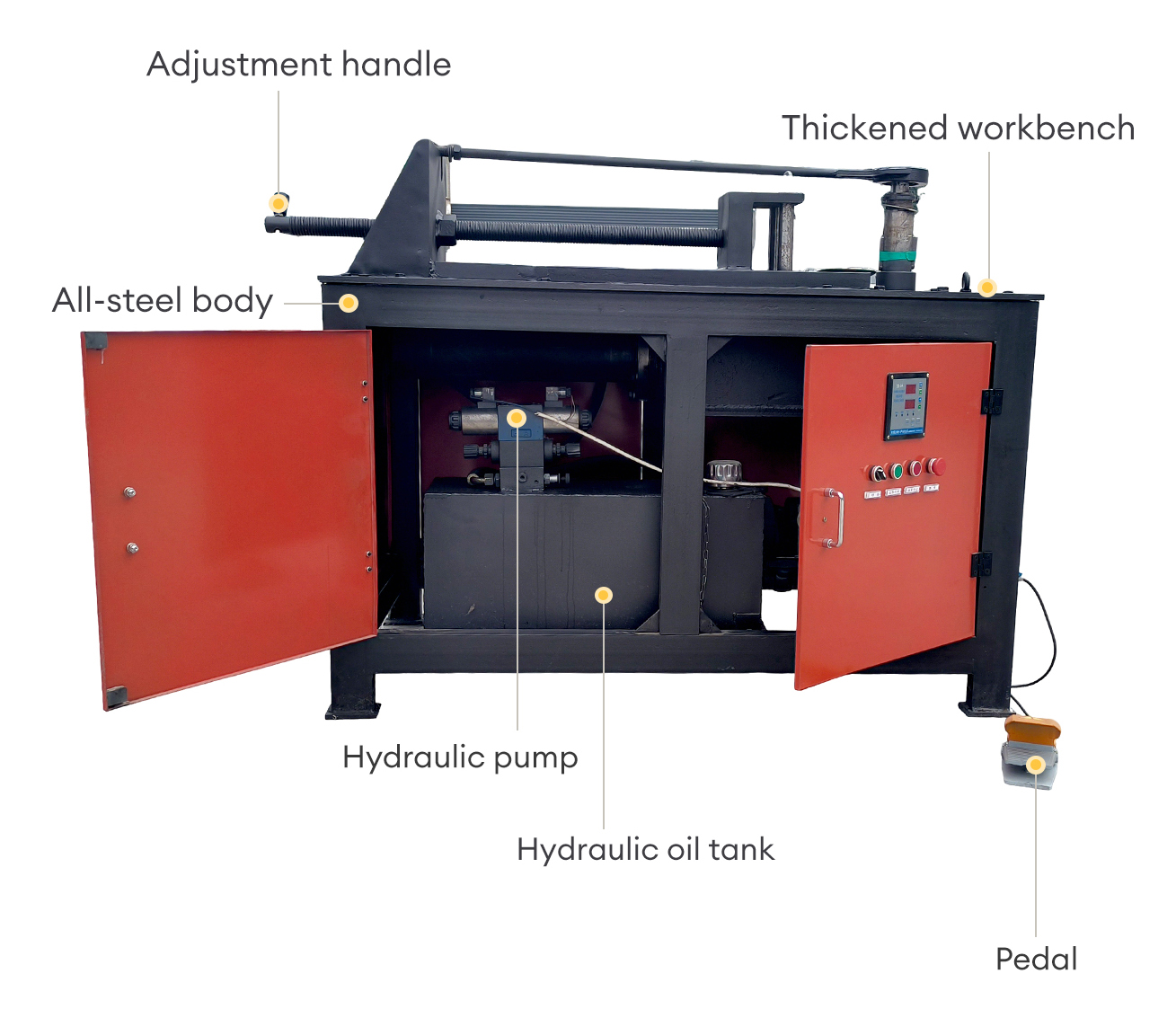

Detailed Display

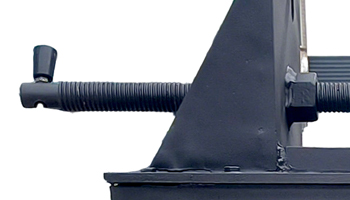

Adjust the handle to manually adjust the size of the bent tube and the position of the mold, to accommodate different tube materials for processing.

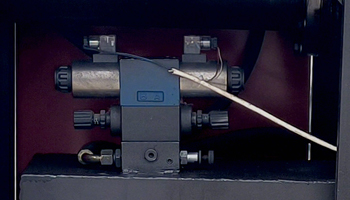

The hydraulic pump outputs high-pressure oil, providing hydraulic power for pipe bending.

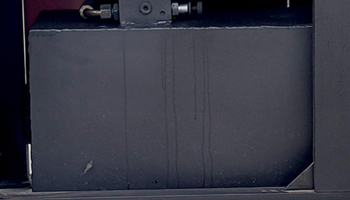

The hydraulic oil tank stores hydraulic oil, supplies oil to the entire hydraulic system, and dissipates heat and precipitates impurities.

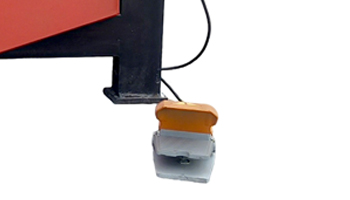

Step on the pedal to control the start and stop of the pipe bending machine, freeing both hands for convenient pipe placement and operation.
Product Specifications
Product Photos
