Alec 100# Hydraulic Fully Automatic CNC Pipe Bending Machine is an industrial-grade, high-precision solution designed for bending large steel pipes in heavy construction, pipeline, and large-scale metalworking projects worldwide. Powered by a robust 7.5kW motor and fully automatic hydraulic system, it delivers powerful, consistent torque for smooth, accurate bends on the largest pipe sizes.
It supports steel pipe diameters from Φ25mm to Φ100mm with wall thickness ≤3mm, and features 9 programmable bending angles for versatile customization. With a spindle speed of 9 RPM, it ensures controlled, distortion-free bends for maximum precision, while the 380V power supply provides stable performance for continuous industrial use. Built with a heavy-duty reinforced frame and weighing 1200kg, it is engineered for 24/7 operation and long-term durability. This fully automatic hydraulic pipe bender is a high-demand, repeat-order product for global metalworking equipment dealers targeting large construction, pipeline, and industrial markets.
产品优势
产品参数
| Model | 100# Hydraulic Fully Automatic CNC Pipe Bending Machine |
| Applicable Pipe Diameter | Φ25–100mm |
| Motor Power | 7.5kW |
| Spindle Speed | 9 RPM |
| Power Supply | 380V 50Hz |
| Programmable Bending Angles | 9 angles |
| Applicable Wall Thickness | ≤3mm |
| Machine Dimensions | 1800×2000×1350mm |
| Machine Weight | 1200kg |
Product Field Work
Real Shot Images
One machine does it all
Multiple Models Available For Selection
Metal processing machinery

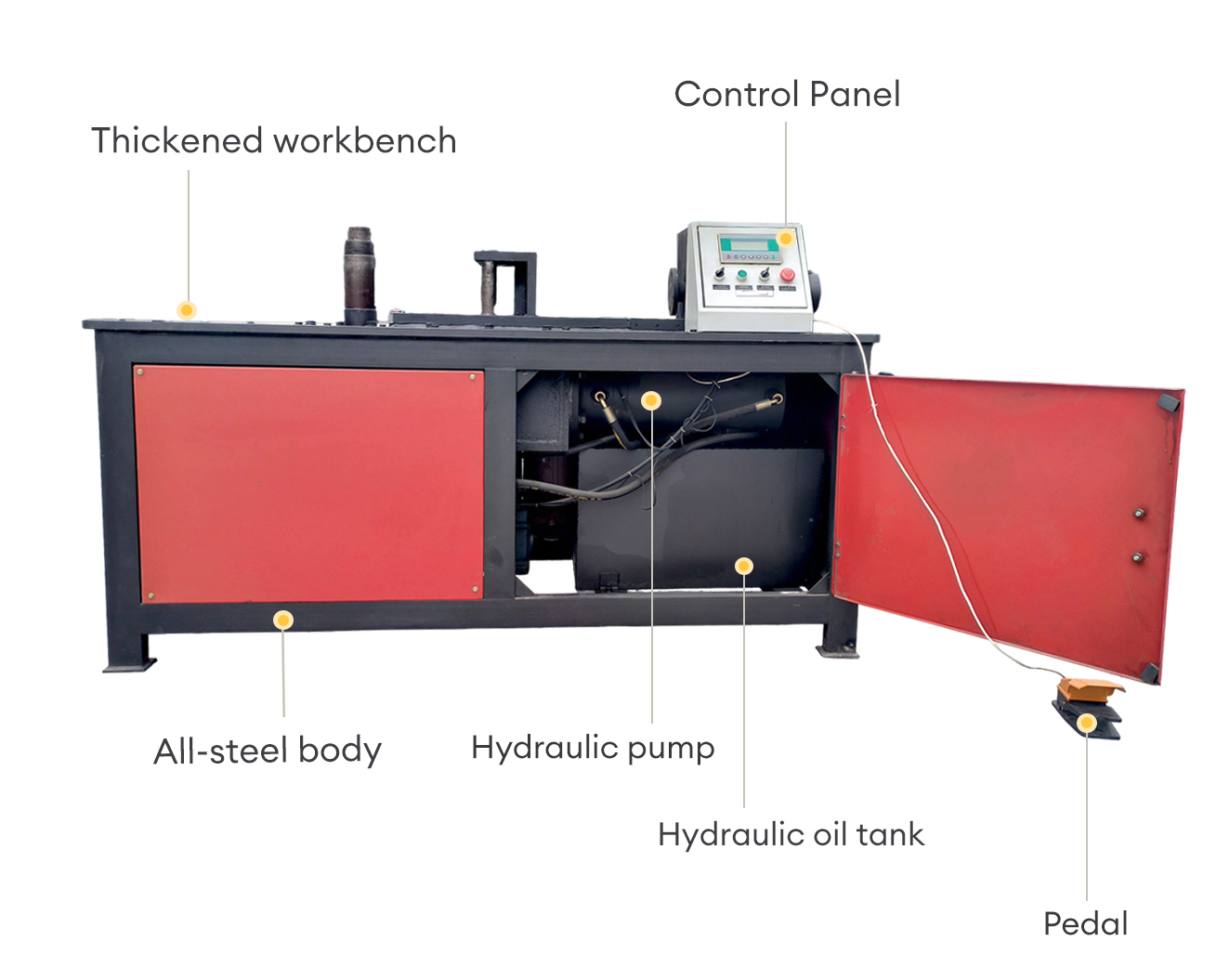

Detailed Display

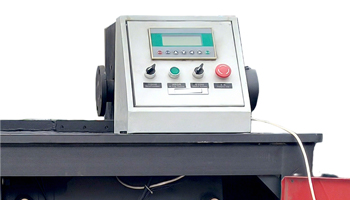

The control panel of the pipe bending machine serves as the core tunit for parameter setting, operational control, and status monitoring of the entire machine.

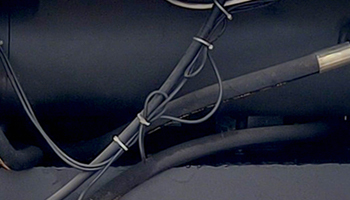

The hydraulic pump outputs high-pressure oil, providing hydraulic power for pipe bending.
The hydraulic oil tank stores hydraulic oil, which supplies oil to the entire hydraulic system and dissipates heat while precipitating impurities.

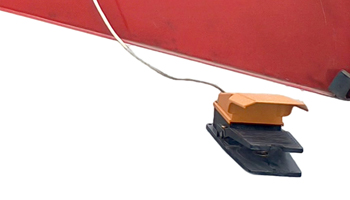

Step on the pedal to control the start and stop of the pipe bending machine, freeing both hands for convenient pipe placement and operation.
