Products Description
The M9 Plastering/Grouting Machine is an all-in-one, wheel-mounted solution designed for small-to-medium construction projects. With a 5.5kW main motor and 1.5kW air compressor, it efficiently handles materials up to 5mm in particle size, delivering a 30L/min flow rate at 50BAR pressure.
It offers a vertical conveying distance of 15m and horizontal distance of 30m, making it ideal for plastering, grouting, and spraying work in residential buildings and renovation projects. The integrated 115L mixer and compact design ensure easy operation and maneuverability on job sites.

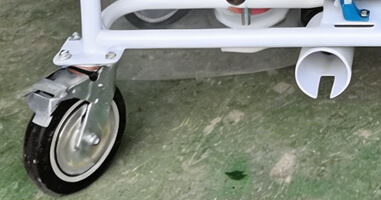

At just 260kg (net weight), with sturdy wheels and a filling height of 900mm, it is built for quick setup and low maintenance. This versatile machine is a high-demand, repeat-order product perfect for dealers targeting contractors construction market.
Products Advantage
Products Parameters
| Model | M9 |
| Voltage/Frequency | 380V/50Hz |
| Vertical Conveying Distance | 15m |
| Horizontal Conveying Distance | 30m |
| Conveying Capacity | 30L/min |
| Maximum Particle Size | 5mm |
| Output Pressure | 50BAR |
| Mixer Capacity | 115L |
| Motor Power | 5.5kW |
| Air Compressor Power | 1.5kW |
| Filling Height | 900mm |
| Product Weight | 260kg |
| Packing Weight | 350kg |
| Machine Dimensions | 1220×720×1550mm |
| Packing Dimensions | 1325×840×1420mm |
Product Field Work
Real Shot Images
One machine does it all
Multiple Models Available For Selection
Construction machinery industry

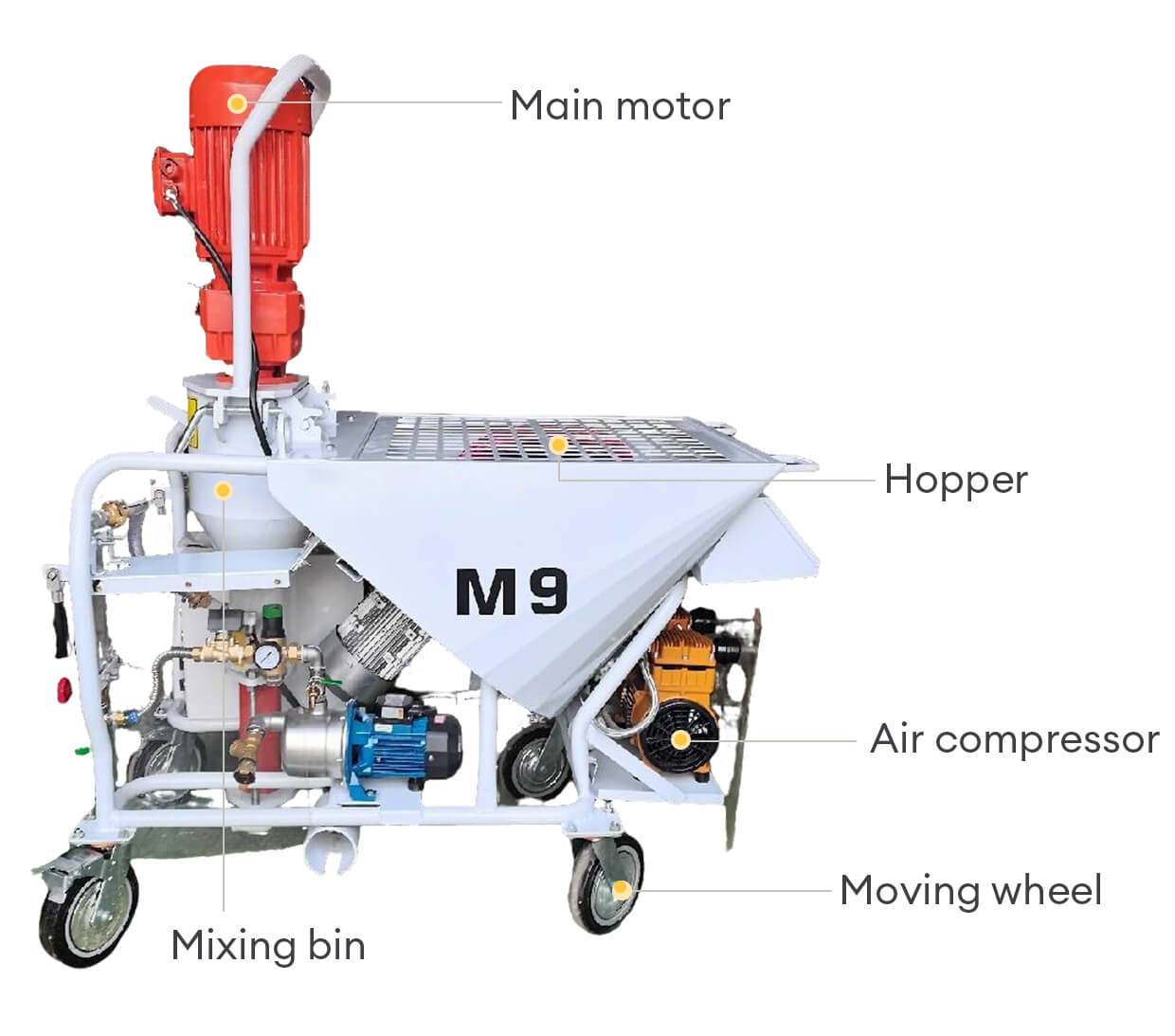

Detailed Display

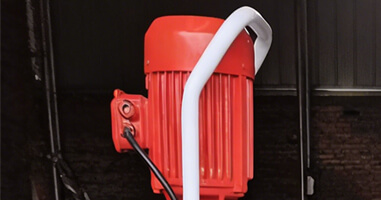

High power, strong performance and stable operation

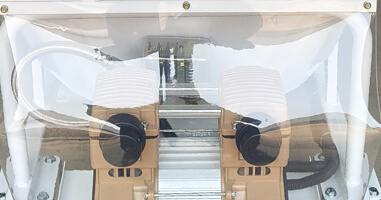

A high-quality air compressor ensures more even air distribution and better spray effect.

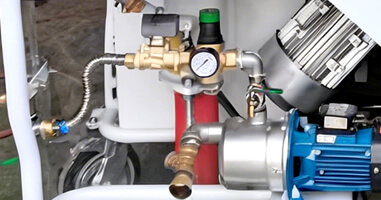

Automatic water filling, one-button start and stop, saving time and effort.
Safe to operate, flexible and convenient
Product Specifications
Product Photos
