Products Description
The M10 Plastering/Grouting Machine is a high-performance, all-in-one wheel-mounted solution designed for mid-to-large construction projects. Powered by a 7.5kW main motor and 1.5kW feeding motor, it efficiently handles materials with a maximum particle size of 5mm, delivering a conveying capacity of 5-7t/h at 5BAR pressure.
It features a remarkable horizontal conveying distance of 200m and vertical conveying distance of 100m, making it ideal for multi-story buildings, large-scale plastering, grouting, and spraying applications. The integrated 115L mixer and compact design ensure seamless operation and easy maneuverability on any job site.
At just 280kg net weight, with heavy-duty wheels for mobility, this machine is built for quick setup and low maintenance. It is a high-demand, repeat-order product perfect for dealers targeting contractors construction market.
Products Advantage
Products Parameters
| Model | M10 |
| Voltage/Frequency | 380V/50Hz |
| Conveying Capacity | 5-7t/h |
| Conveying Pressure | 5BAR |
| Feeding Motor | 1.5kW |
| Motor Power | 7.5kW |
| Horizontal Conveying Distance | 200m |
| Vertical Conveying Distance | 100m |
| Maximum Particle Size | 5mm |
| Mixer Capacity | 115L |
| Total Weight | 280kg |
| Dimensions | 1370×720×1550mm |
| Packaging Weight | 380kg |
| Packaging Dimensions | 1470×840×1420mm |

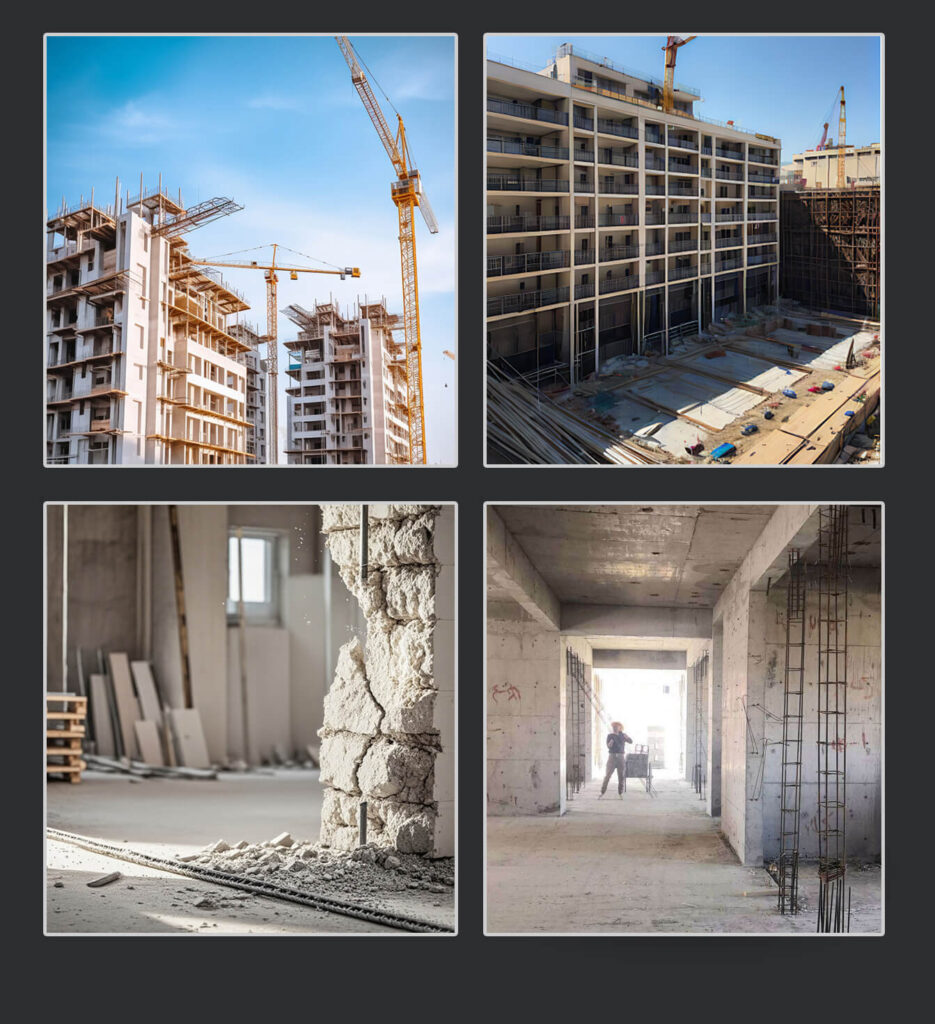

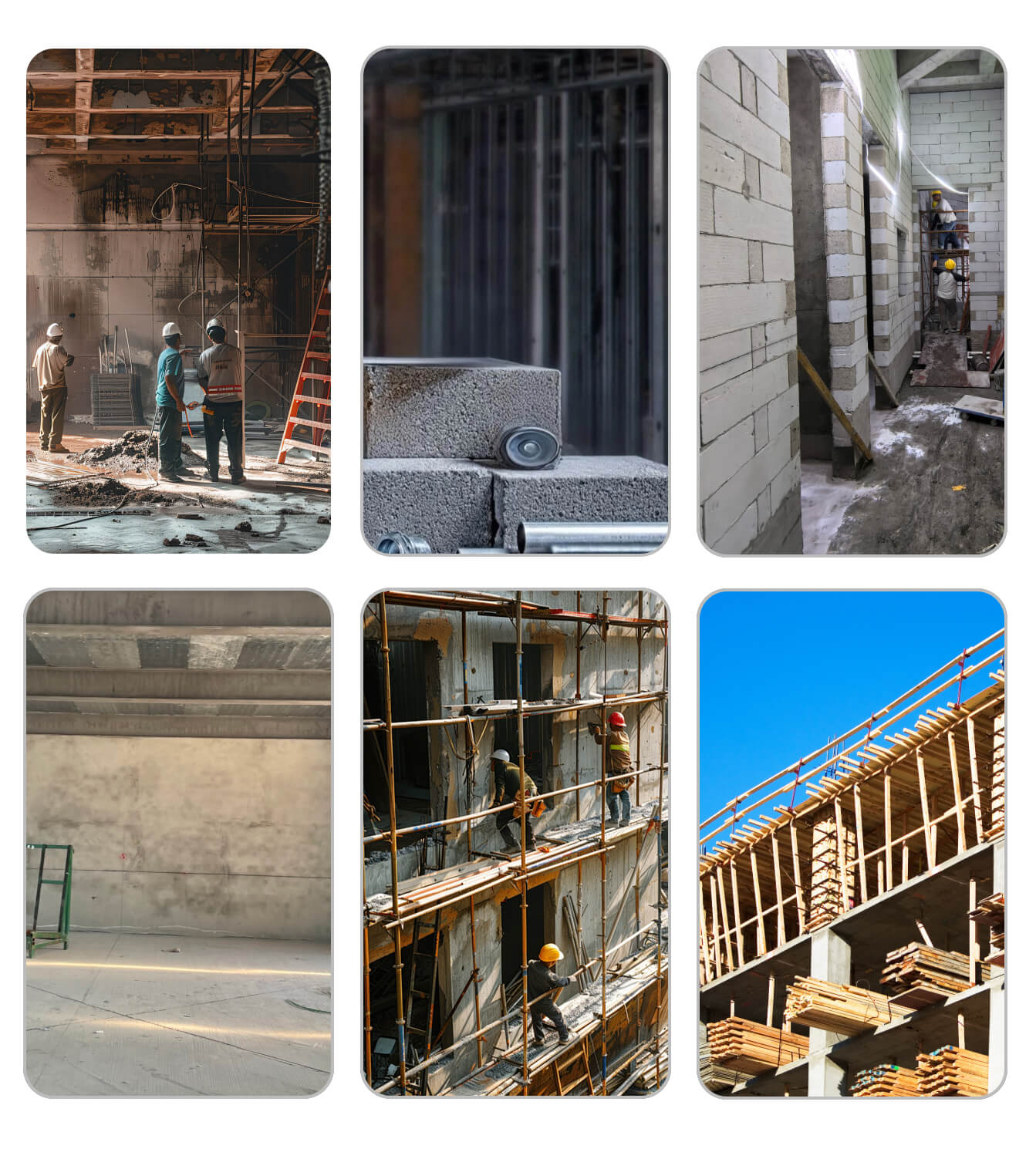

Product Field Work

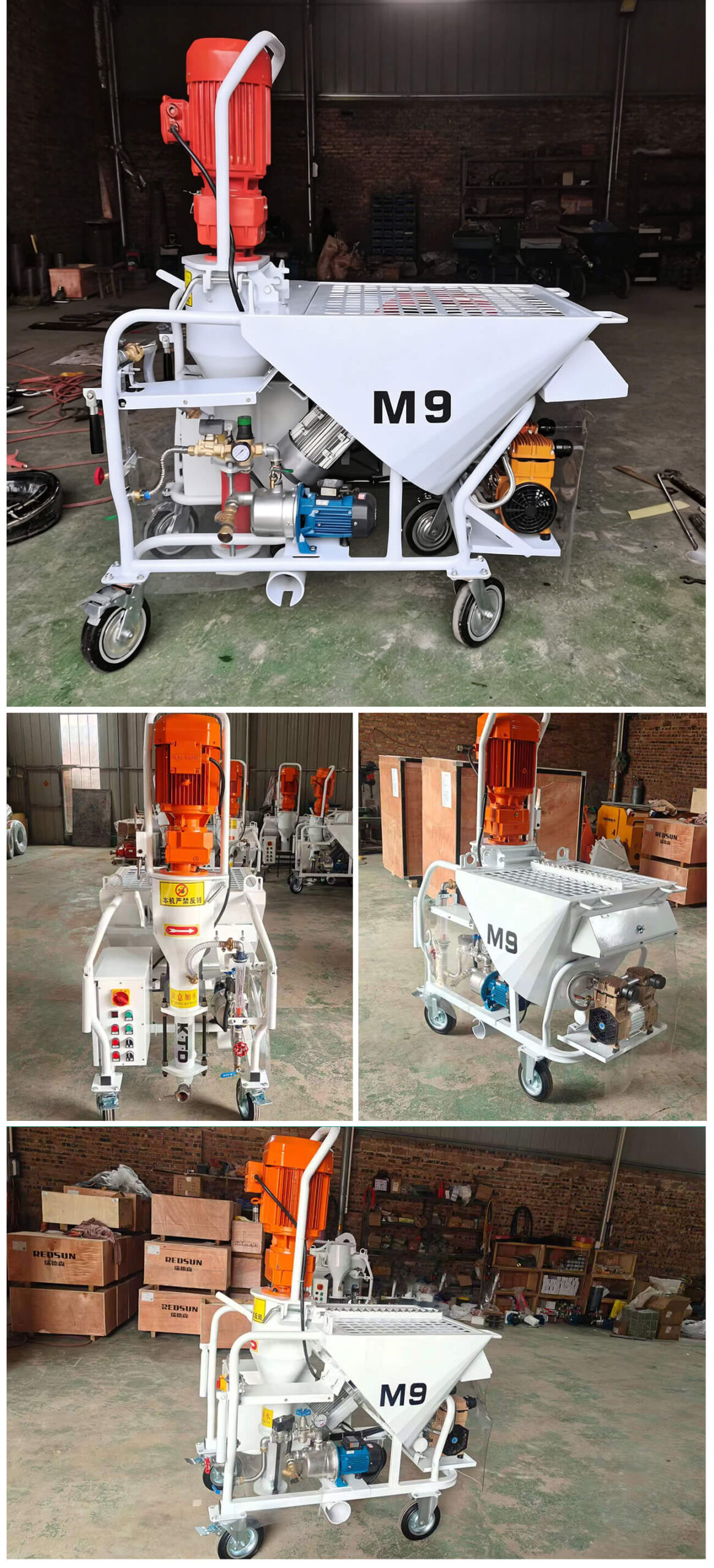

Real Shot Images
One machine does it all

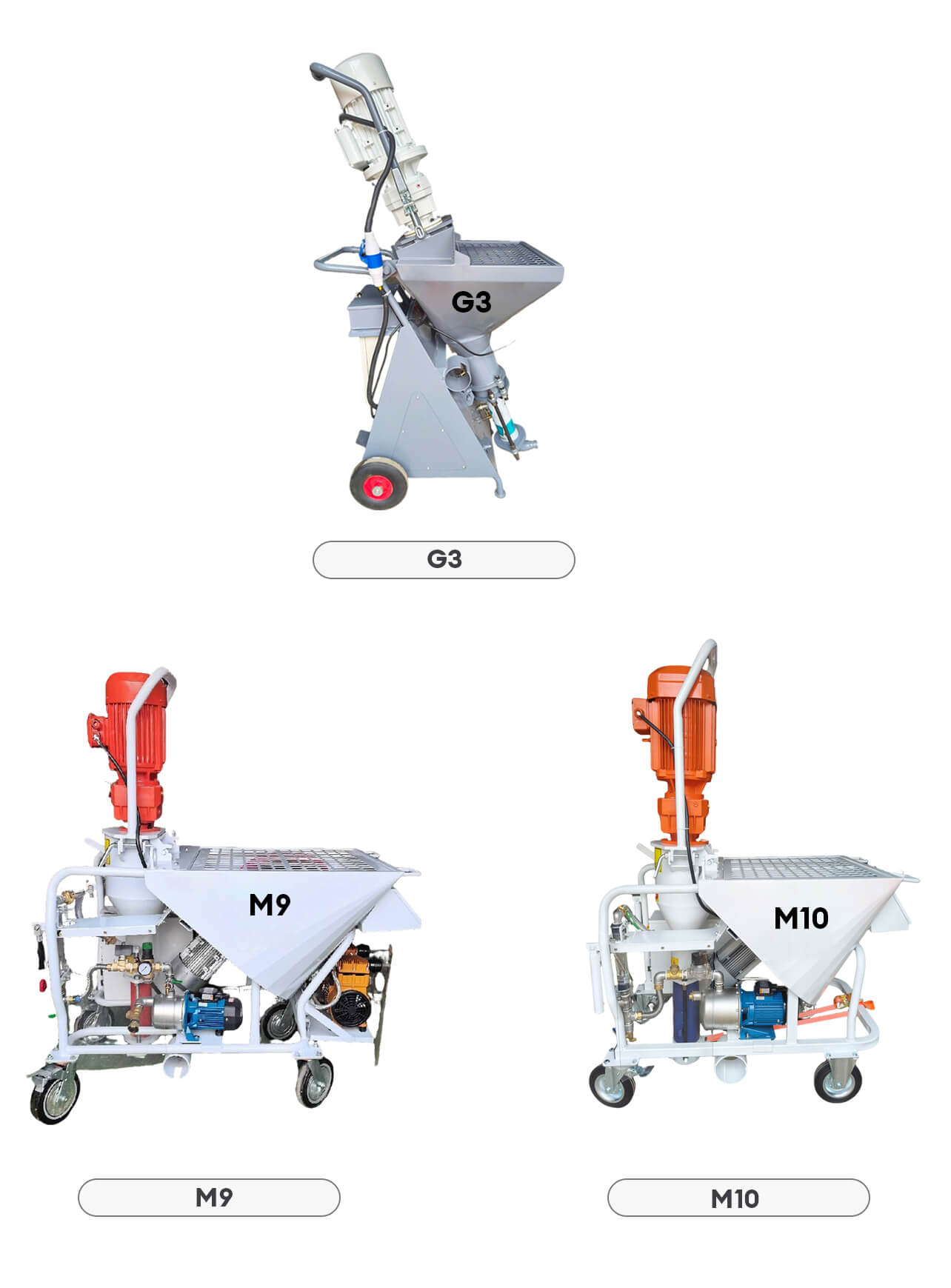

Multiple Models Available For Selection
Construction machinery industry

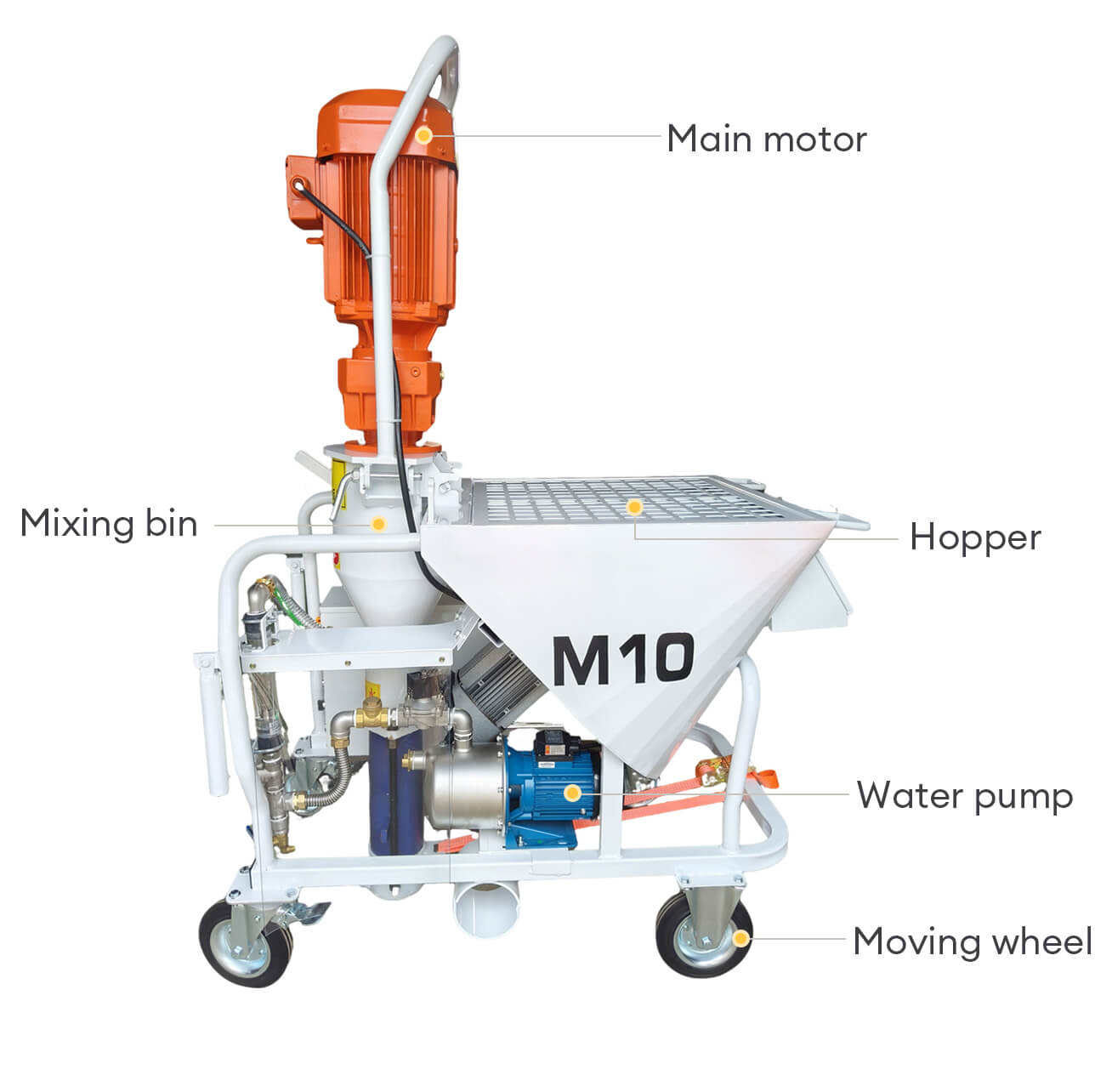

Detailed Display

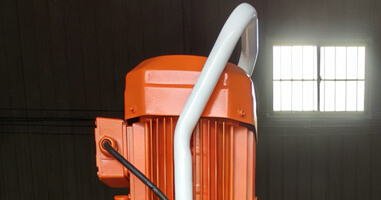

High power, strong performance and stable operation

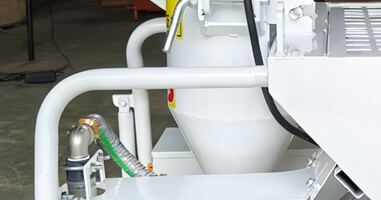

Achieve efficient mixing, precise proportioning, and pretreatment of gypsum raw materials and water

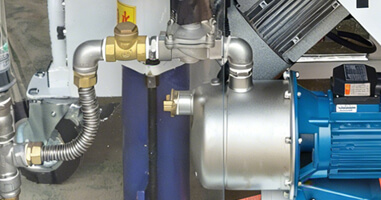

Automatic water filling, one-button start and stop, saving time and effort.

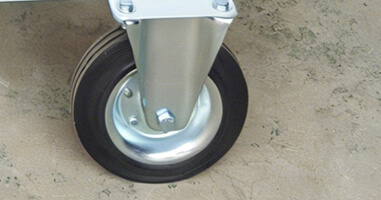

Safe to operate, flexible and convenient
Product Specifications
Product Photos
Ushering In A New
Construction Machinery
One machine does it all
