Products Description
Alec 3-11m Hand-Operated Aluminum Concrete Truss Screed is a lightweight, modular solution designed for small-to-medium concrete leveling and compaction projects worldwide. Powered by a reliable 160 gasoline engine, it delivers consistent vibration power to smooth and compact concrete surfaces efficiently.
With a compaction depth of 10–20cm and a modular design supporting assembly lengths from 3m to 11m, it adapts to various road, slab, and small infrastructure projects. The hand-operated travel mechanism offers precise control at speeds up to 6m/min, while the included 18m steel rope ensures flexibility on job sites. Built with a durable aluminum alloy frame (only 22kg per meter), this screed is engineered for easy assembly, portability, and low maintenance, making it a high-demand, repeat-order product for global construction equipment dealers targeting light-to-medium construction markets.
Products Advantage
Products Parameters
| Product Name | 3-11m Hand-Operated Concrete Truss Screed |
| Power Unit | 160 Gasoline Engine |
| Max Power | 6.5HP |
| Start Method | Recoil Start |
| Compaction Thickness | 10–20cm |
| Travel Mode | Hand-Operated Travel |
| Assembly Length | 3–11m |
| Travel Speed | ≤6m/min |
| Section Specification | 1m / 1.5m |
| Frame Size | 23×30cm |
| Steel Rope Length | 18m |
| Weight Per Meter | 22kg |
| Frame Material | Aluminum Alloy |
Product Field Work
Real Shot Images
One machine does it all
Multiple Models Available For Selection
Construction machinery industry
Detailed Display

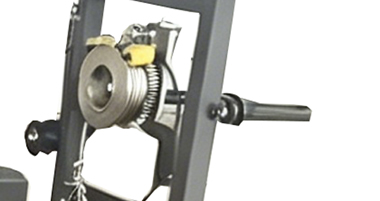

The hand-cranked drive system pulls the vibrating beam forward, allowing for fine adjustments and deviation correction. It operates without electricity and is easy to use.

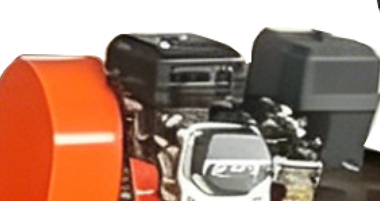

The power core provides vibration and walking power for the entire machine, featuring strong power and stable operation.

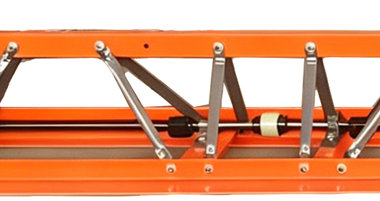

Generate high-frequency vibration force to achieve concrete vibration and leveling.

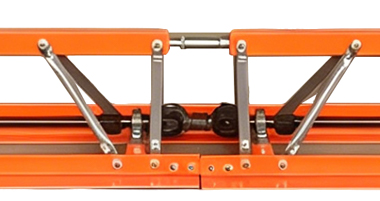

Transmit power, adapt to angular deviation, and ensure smooth transmission.
Product Specifications
Product Photos
Ushering In A New
Construction machinery industry
One machine does it all
