产品描述
Alec YH24 steel bar arc bending machine is professional reinforcement arc forming equipment widely used for arch reinforcement processing in tunnels, bridges, culverts and construction projects. It is designed to bend deformed steel bars of 12–22mm, powered by a stable 3KW motor with adjustable working speed ranging from 10–20r/min under 380V rated voltage. Equipped with movable wheels for flexible on-site moving, compact structure only weighs 200kg for easy transportation and layout. With stable operation and low failure rate, we offer factory direct wholesale and OEM private label service for global construction machinery distributors.
产品优势
产品参数
| Model | 24 Type Steel Bar Arc Bending Machine |
| Bending Capacity | Deformed steel bar 12–22mm |
| Motor Power | 3KW |
| Rated Voltage | 380V |
| Working Speed | 10–20r/min |
| Overall Dimension | 930×660×820mm |
| Net Weight | 200kg |
Product Field Work
Real Shot Images
One machine does it all
Multiple Models Available For Selection
Metal processing machinery

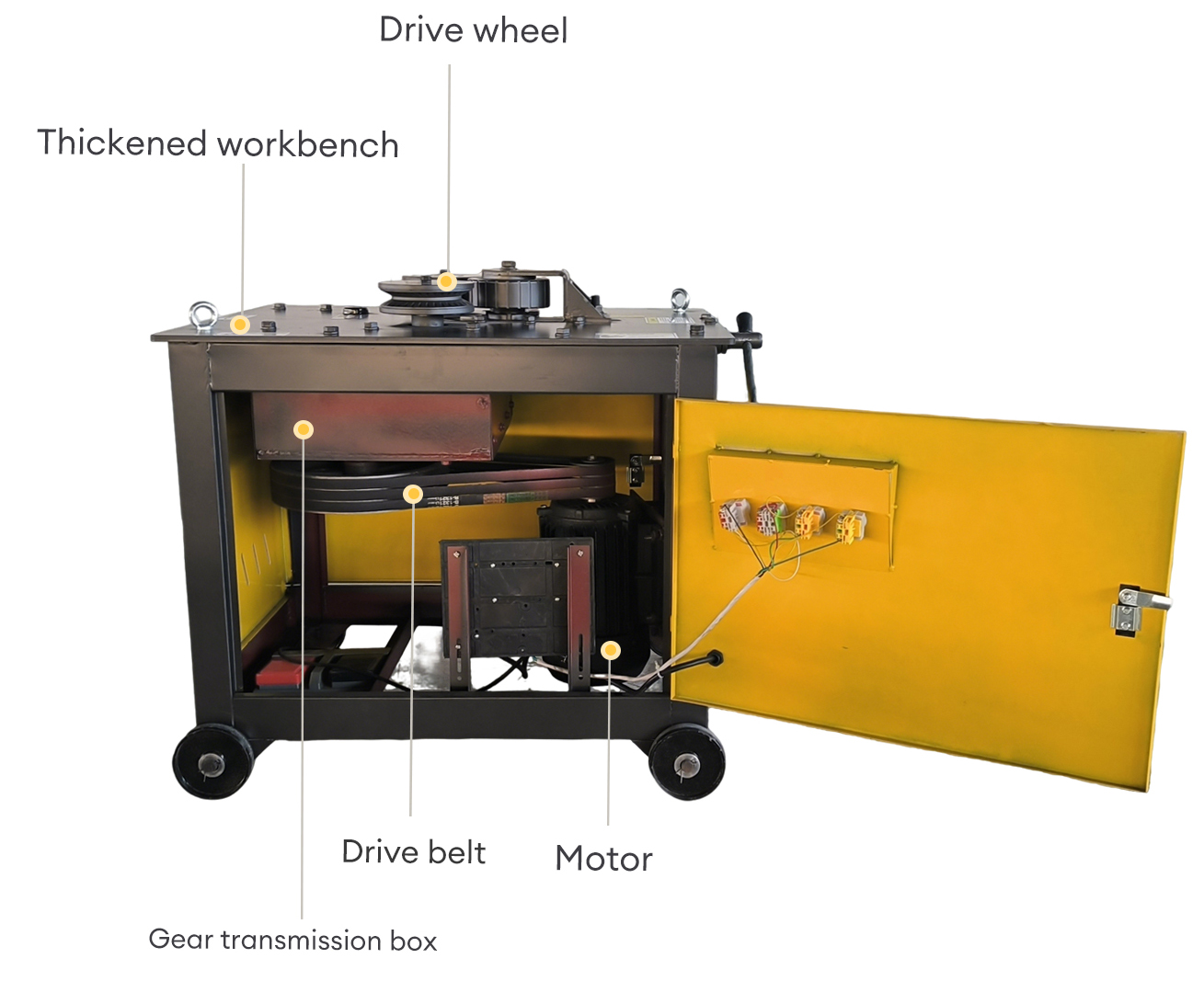

Detailed Display

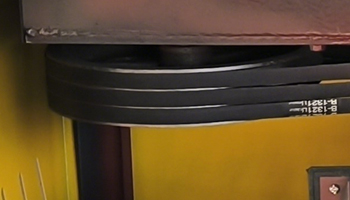

The purpose is to transmit motor power to the transmission gear of the steel bar bending machine, ensuring that the roller bends the steel bar at a constant speed

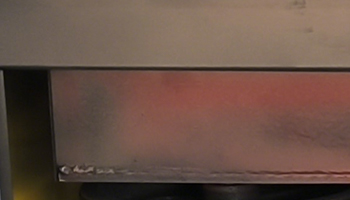

The internal gear set reduces speed and increases torque, providing a stable output torque to drive the bending roller and complete the steel bar bending operation.

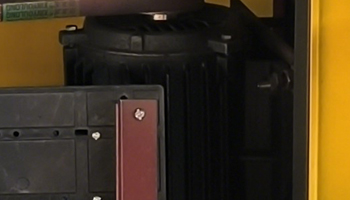

It provides the original power for the steel bar bending machine and serves as the power core for the entire machine’s operation.

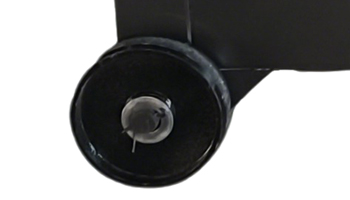

It facilitates the overall relocation and transportation of the steel bar bending machine, allowing for flexible changes in construction locations.
